ARROW | SKU:
ARW-APL02-ST-306-Q73-605
17% off

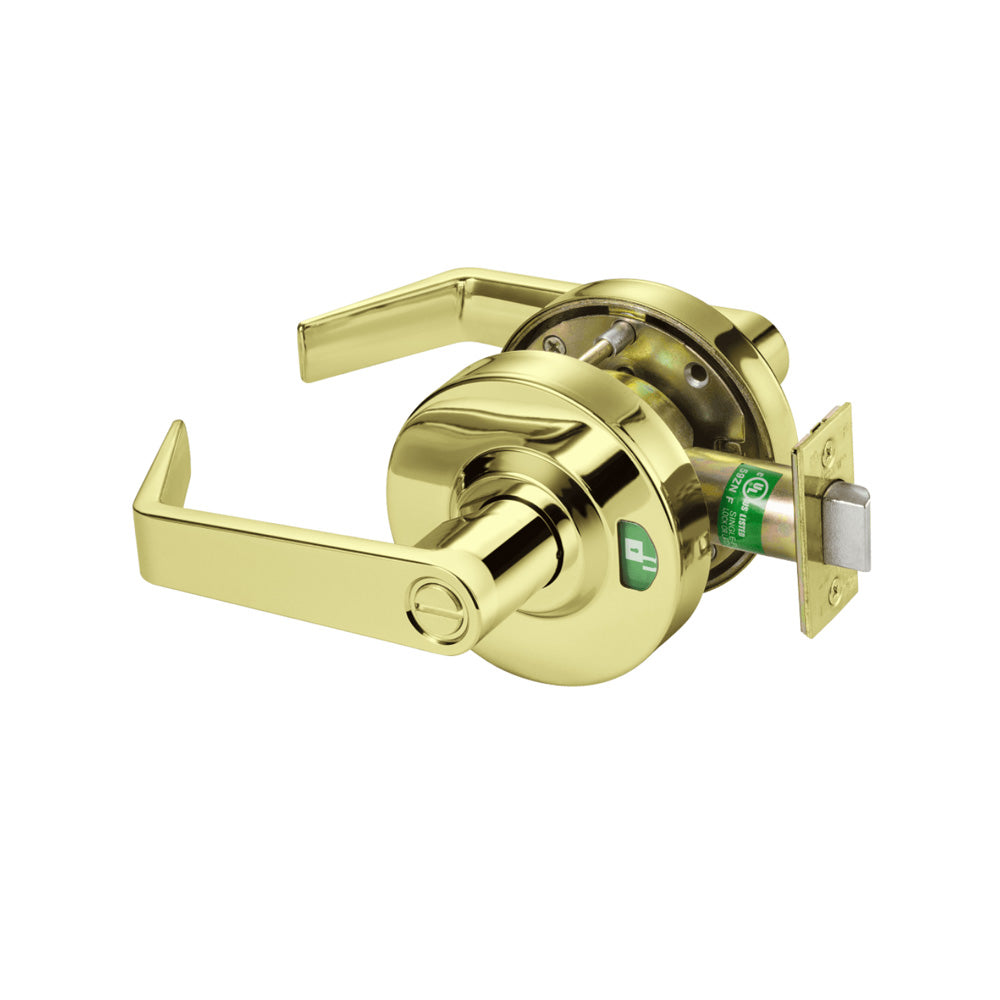

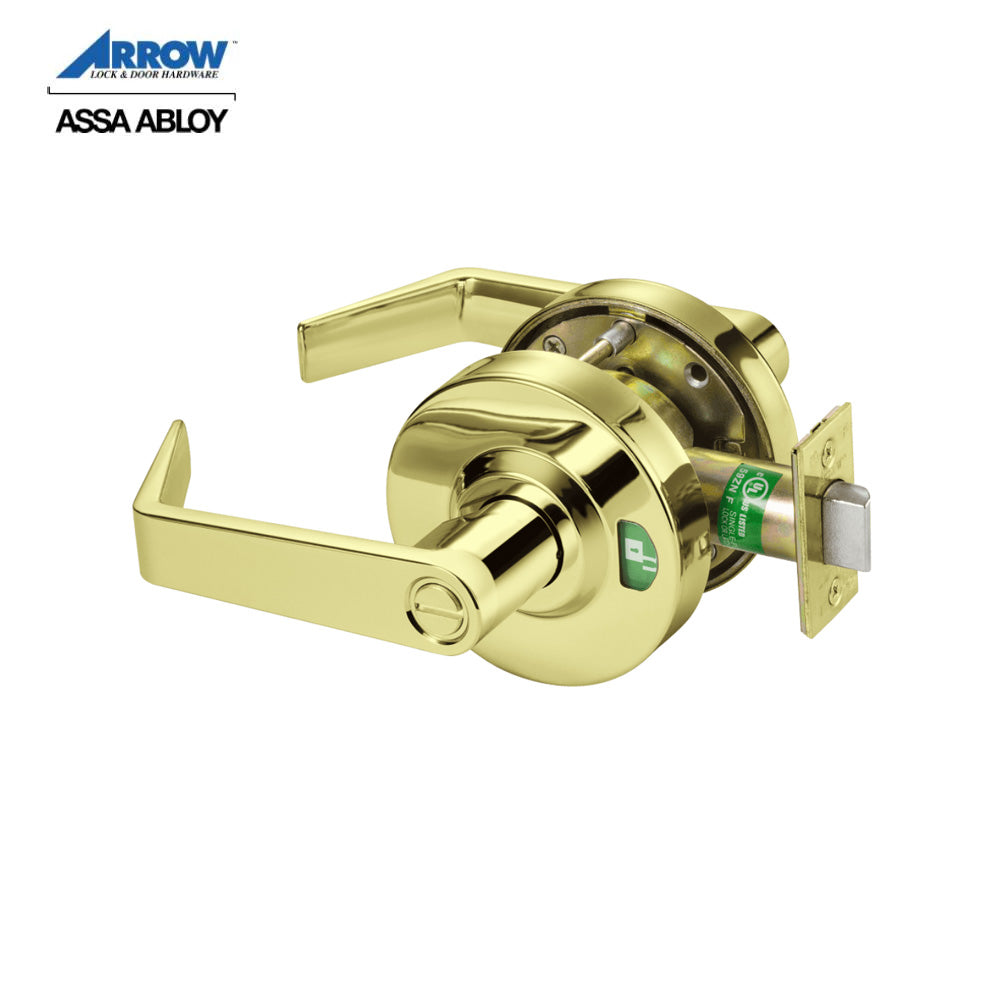

Arrow - APL02-ST - Privacy Cylindrical Lock with 3-1/2 Diameter Rose and 1/8 Projection - Grade 1 - Bright Brass
$18386
$22063
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Arrow - APL02-ST - Privacy Cylindrical Lock with 3-1/2 Diameter Ros...
$18386
$22063
Unit price
/
Unavailable
Description
Description
Arrow - APL02-ST - Privacy Cylindrical Lock with 3-1/2" Diameter Rose and 1/8" Projection - Grade 1 - Bright Brass
Grade 1 UL Listed Cylindrical Lever - Privacy With Indicator Function - ST Lever - 306 ANSI Strike (4-7/8" x 1-1/4") - Q73 Spring Latch (2-3/4" Backset)
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Arrow |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Application | Indicator with Icons |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI/BHMA A156.2, Series 4000 |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specifications:
| Function | 02-Privacy |
| Lever/Knob Design | ST - Sierra |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | 3-1/2" Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type | Non-Keyed |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Latch Number | Q73 |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | Adjustable 2-3/8" and 2-3/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 306 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Product Type | Cylindrical Lock |
