Adams Rite | SKU:
ADMR-8211MLR-36-628
34% off

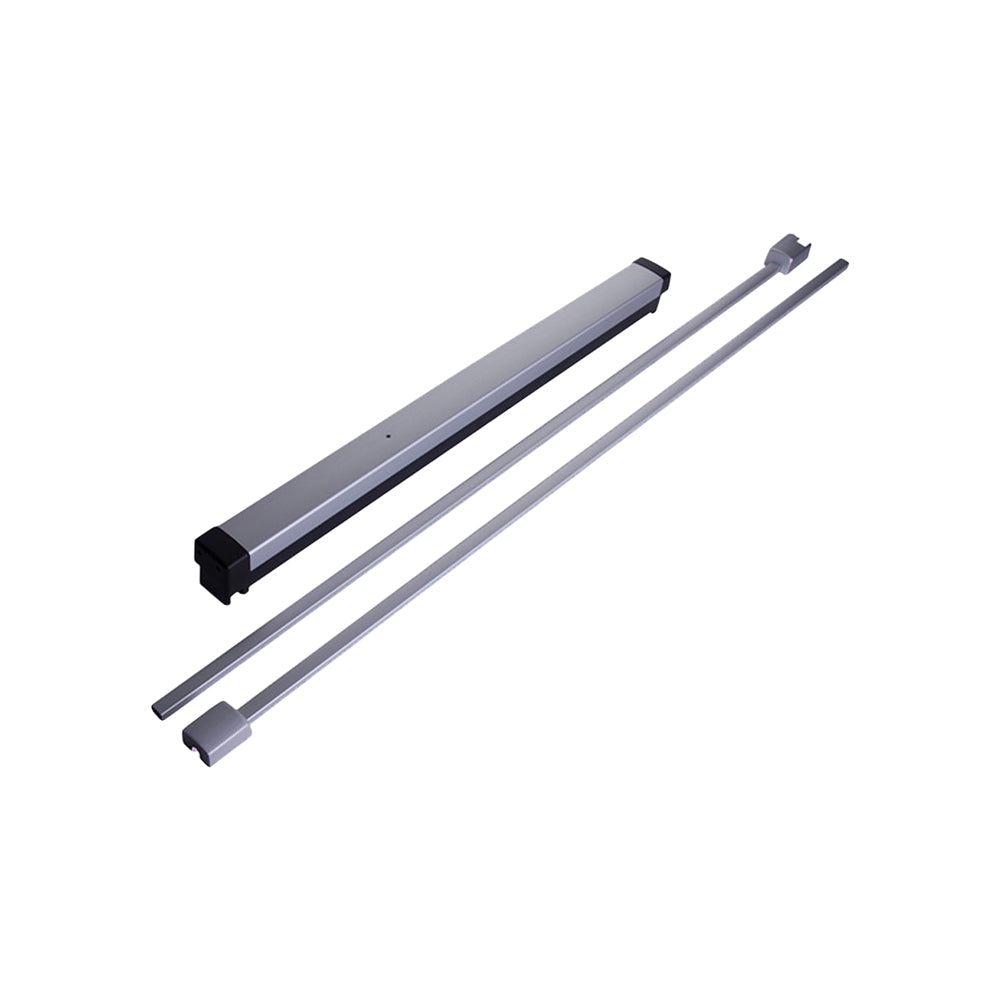

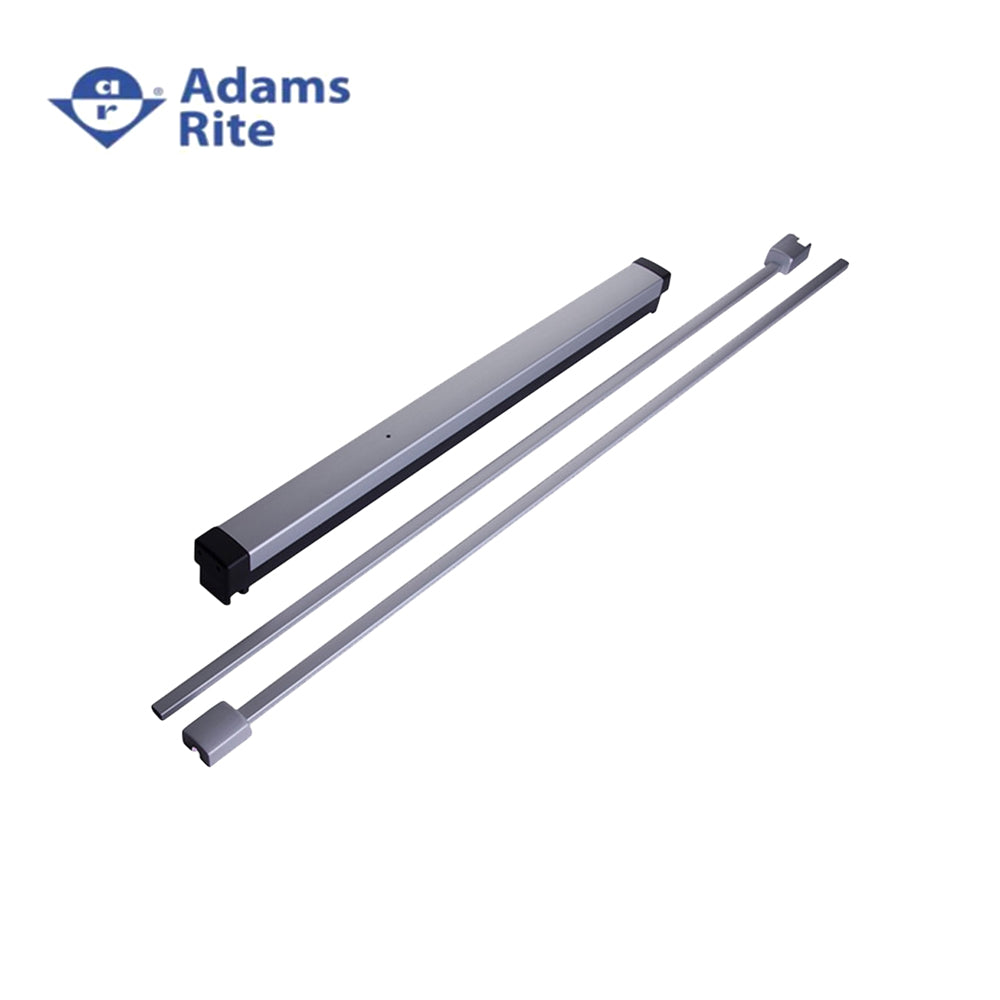

Adams Rite - 8211MLR - Surface Vertical Rod Exit Device withMotorized Latch Retraction (MLR) - Fits Narrow and Wide Stile Aluminum Doors
$1,04520
$1,59314
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Adams Rite - 8211MLR - Surface Vertical Rod Exit Device withMotoriz...
$1,04520
$1,59314
Unit price
/
Unavailable
Description
Description
Adams Rite - 8211MLR - Surface Vertical Rod Exit Device withMotorized Latch Retraction (MLR) - Fits Narrow and Wide Stile Aluminum Doors

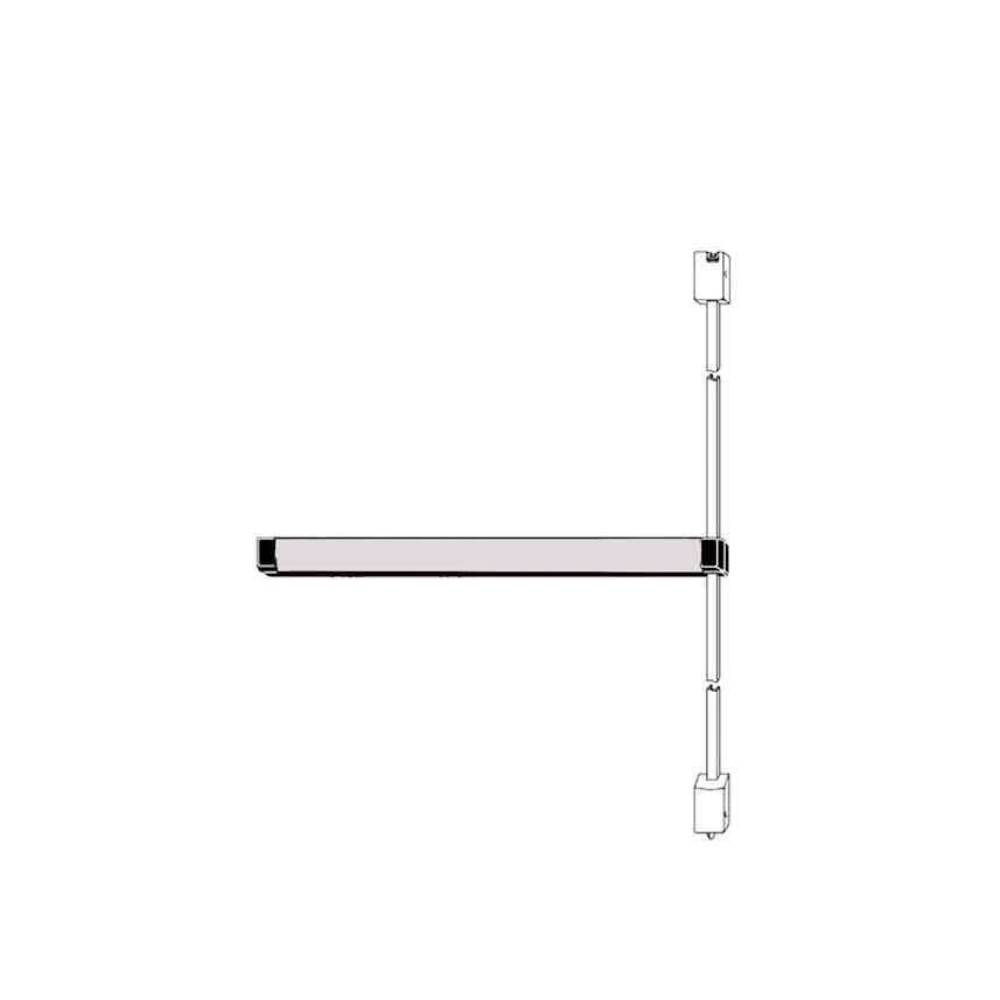

The 8200 Series Narrow Stile Surface Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with surface vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors.
Specifications:
| Materials | Push bar made of extruded aluminum, available in a variety of finishes |
| Handing | Device is non-handed. |
| Push bar Length | 30" (762.0 mm) 36" (914.4 mm) 42" (1,066.8 mm) 48" (1,219.2 mm) |
| Bar Height | Standard model adjusts from 30" (762 mm) to 44" (1117.6 mm) |
| Door Thickness | Suits 1-3/4" (44.5 mm) standard, up to 2-1/4" (57.2 mm). |
| Stile Width | Minimum 2" stile. Fits narrow, medium, and wide stile aluminum doors. |
| Projection | 2-15/16" (74.6 mm) when fully projected,1-15/16" (49.2 mm) when dogged. |
| Dogging | Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available. |
| Fasteners | Standard machine screws. |
| Bolts & Strike | The patented top latching mechanism utilizes a rotating top bolt which latches around the header strike, interlocking the door to the frame. Adjustable steel rods protected in contoured covers. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability. Supplied with standard header strike. |
| Cylinders | Select any standard 1-5/32" (29.4 mm) diameter rim cylinder such as the 8736 Rim Cylinder. Available separately. |
| Cylinder x Fixed Pull Functions | For function 03 (Night Latch - key releases latch) select any standard 1-5/32" (29.4 mm) diameter rim cylinder such as the 8736 Rim Cylinder. |
| Finish | US3 - Bright Brass US4 - Satin Brass US32 - Bright Stainless US32D - Satin Stainless |
