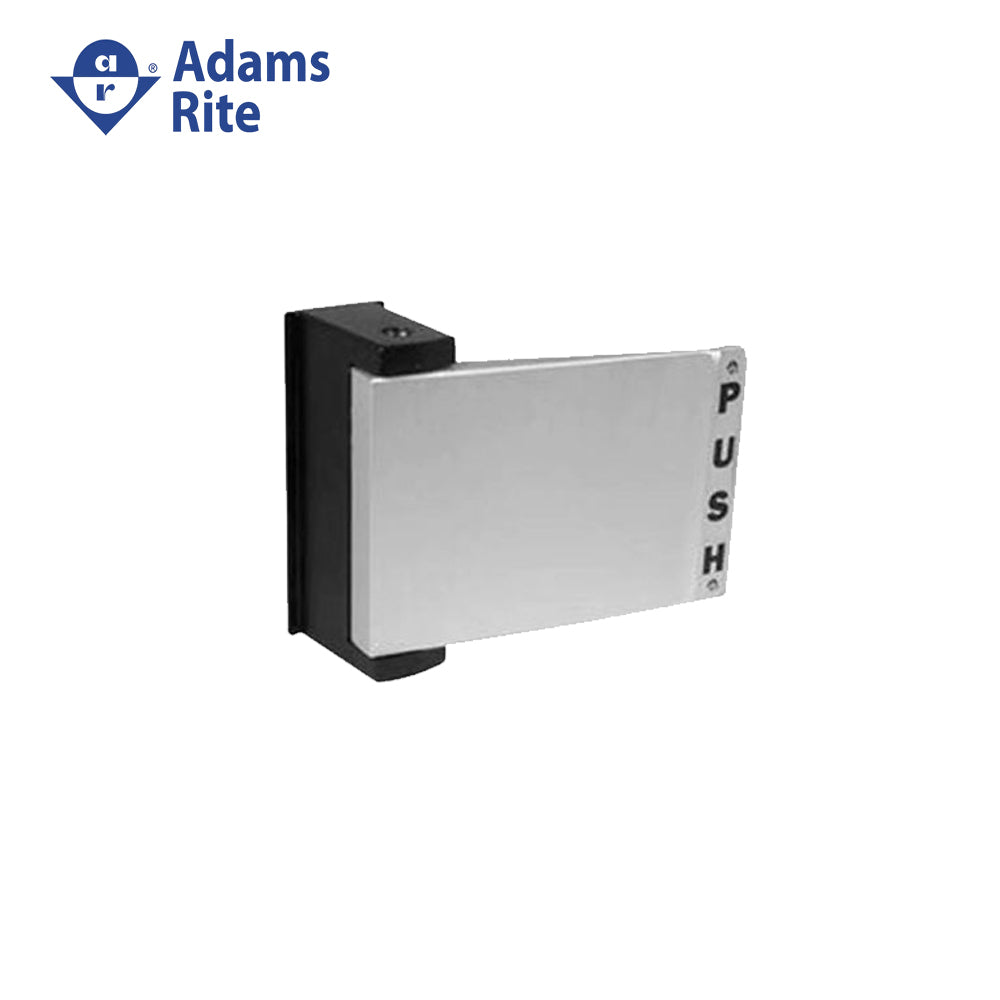

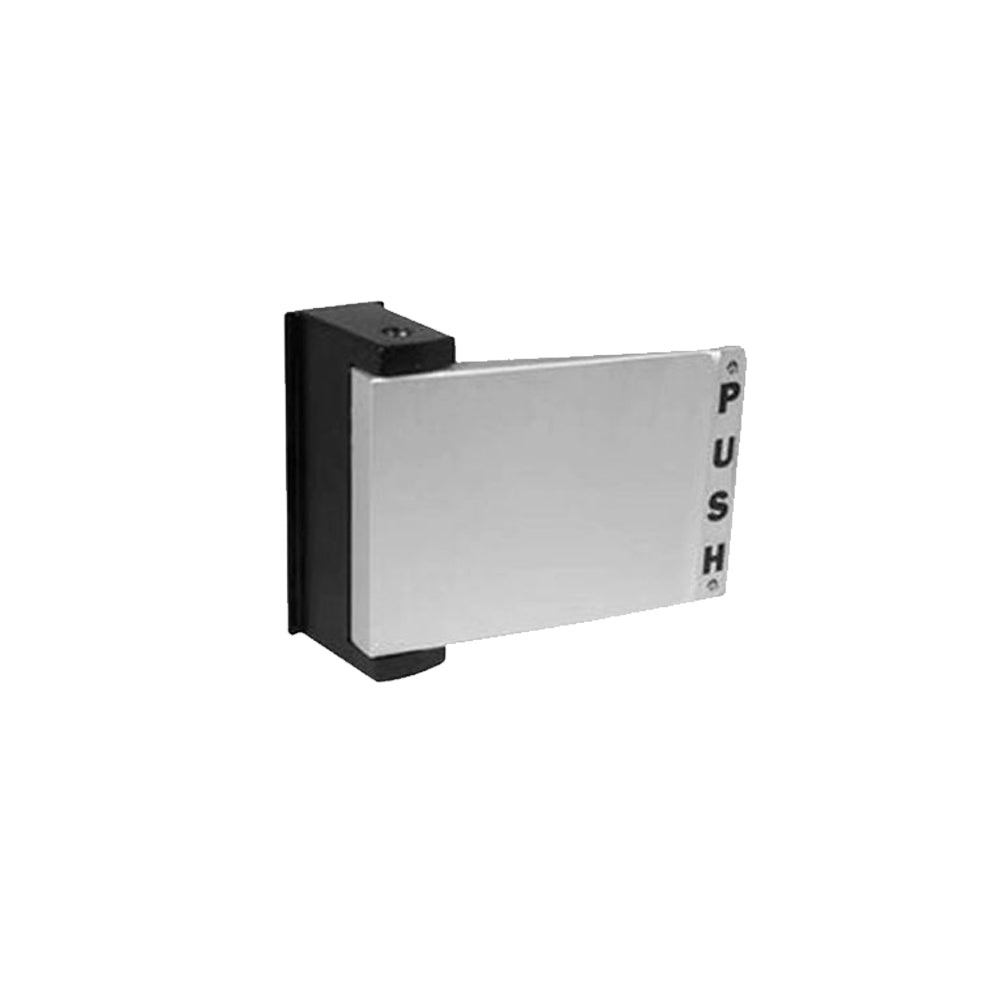

Adams Rite - 4590-02 - Flat Deadlatch Paddle For 1-3/4 In. Thick Door with Push to Left RHR or Exterior of Left-Handed - 628 (Satin Aluminum Clear Anodized Finish)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Adams Rite - 4590-02 - Flat Deadlatch Paddle For 1-3/4 In. Thick Do...
Description
Description
Adams Rite - 4590-02 - Flat Deadlatch Paddle For 1-3/4 In. Thick Door with Push to Left RHR or Exterior of Left-Handed - 628 (Satin Aluminum Clear Anodized Finish)
4590 Deadlatch Paddle The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/Deadlatch.
Features:
- Function: An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/Deadlatch.
- Operation: Available in four modes: push to left, push to right, pull to left, and pull to right.
- Specifications:
- Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available.
- Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
- Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
- Options: First dash number specified operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4”. See dash table on catalog page.
- Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1/2 lb.
Produt Speccifications:
| Product Specs | |
| Vendor | Assa Abloy |
| Manufacturer | Adams Rite |
| SKU | 4590-02-00-628 |
| UID | ADA10045900200628 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Aluminum |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
Technical Specifications:
| Lever/Knob Design | Flat Paddle |
| For Use With | 4300, 4500 and 4900 Series |
| Handing | RHR |
| Door Thickness | 1-3/8" - 1-3/4" |
| Screws | Machine |
| Product Type | Aluminum Door Trim |
Installation Instructions:
