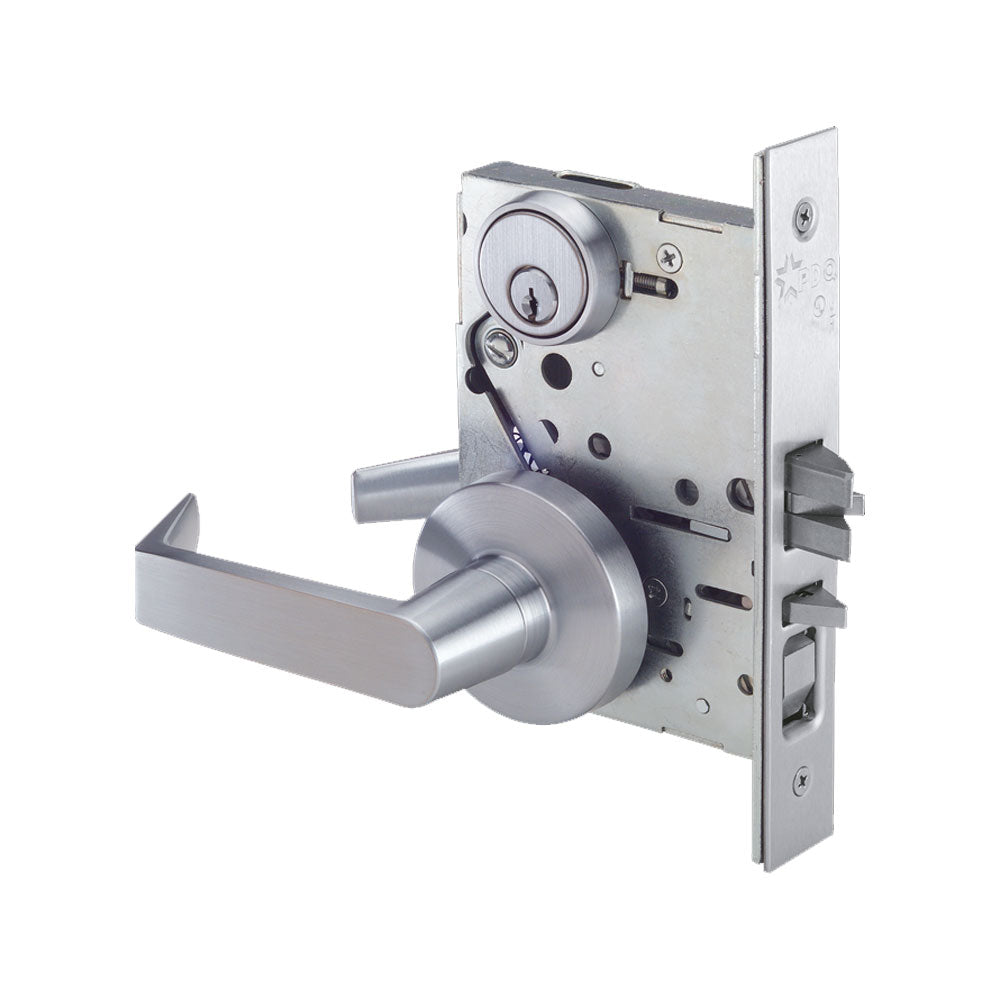

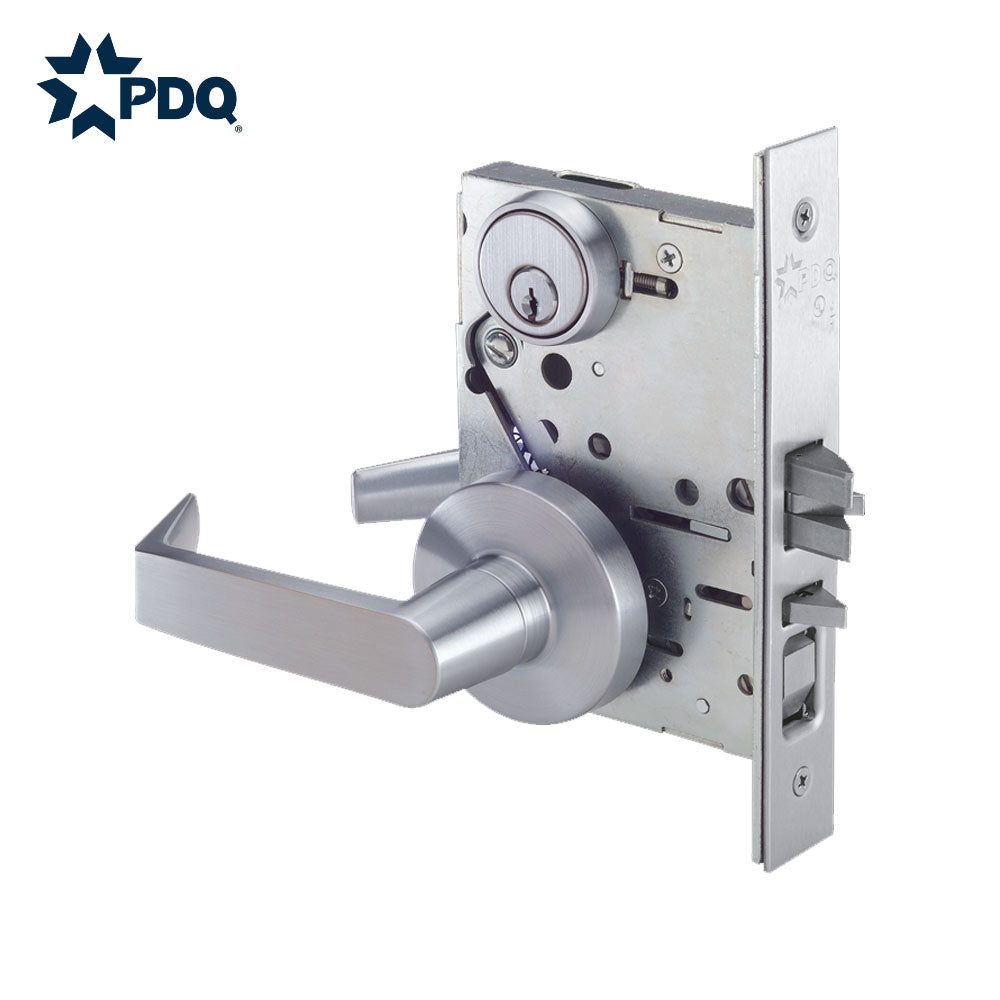

PDQ MR135 - J Series Entrance / Storeroom Mortise Lock with Curved Lip Strike - Door Thickness 1-3/4" and Wide Escutcheon (EW) Trim - ANSI F21 - Grade 1
$25688
$38533
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
PDQ MR135 - J Series Entrance / Storeroom Mortise Lock with Curved ...
$25688
$38533
Unit price
/
Unavailable
Description
Description
PDQ MR135 - J Series Entrance / Storeroom Mortise Lock with Curved Lip Strike - Door Thickness 1-3/4" and Wide Escutcheon (EW) Trim - ANSI F21 - Grade 1
The MR Series combines premium quality with versatility, making it a top choice for security solutions. Each lock is backed by a limited lifetime warranty for your peace of mind. Assembled with care in Lancaster, PA, these mortise locks embody craftsmanship and durability you can trust.
Features & Benefits:
- Crafted from 12-gauge cold-rolled steel, these locksets offer unmatched durability and security
- Choose from 10 lever styles: Philadelphia, Boston, Miami, Chicago, Dallas, Houston, Los Angeles, Memphis, Orlando, Ball Knob
- 8 different finishes are available: 605(US3), 606(US4), 612(US10), 613(US10B), 622(US19), 626(US26D), 629(US32), 630(US32D)
- Each mortise door lock undergoes rigorous testing, surpassing ANSI/BHMA standards with over 11 million cycles
- Enjoy the convenience of field reversibility for flexible installation options
- Our innovative design is protected by US Patent #5,813,255, ensuring you receive a lockset that's both reliable and unique
Certifications:
Explore the impressive certifications of our MR Locks Mortise Locksets, designed for security and peace of mind.
- UL/CUL 10C listed for 3-hour fire doors, these locks are ideal for single doors up to 4' x 8', meeting stringent safety standards
- Certified to ANSI/BHMA 156.13 Operational Grade 1 and Security Grade 1, our mortise door locksets guarantee superior performance and durability
- Approved for use in Florida's High Velocity Hurricane Zone (HVHZ), making them suitable for high-risk environments
- Complies with ADA and ICC/ANSI 117.1 accessibility standards, ensuring inclusivity and usability in all buildings
- The wide escutcheon trim meets Unified Facilities Guide Specification 08 71 0, offering versatile design options
Specifications:
| For Doors: | 1-3/4" standard, 2" - 3" thick doors available as special order |
| Backset: | 2-3/4" |
| Case: | 12-gauge cold rolled steel mechanism Dichromated for corrosion resistance Features weakened spindle design to prevent case damage |
| Armor Front: | Beveled 1/8" on 2" 625 (US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material |
| Strike: | Non-handed Curved Lip Strike 625 (US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material |
| Levers: | F Series Sectional/Escutcheon: Philadelphia, Boston, Miami J Series Sectional/Escutcheon: Philadelphia, Boston, Miami, Chicago, Dallas, Houston, Los Angeles, Memphis, Orlando, Ball Knob |
| Latchbolt: | 3/4" Throw Investment Cast Stainless Steel Anti-friction |
| Deadbolt: | 1" Throw Investment Cast Stainless Steel |
| Hand: | Most functions field reversible. Specify handing for Strikes, consult factory for details |
| Trim: | F trim - forged brass levers and escutcheons Round and square rose available J Standard and J Wide Trim - stainless steel escutcheon and levers, PHL, MEM, MIA and BSN are solid levers LAx, ORL, DAL and CHI are tube levers |
| Keys: | Two (2) per Lock |
| Keyways: | SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers |
| Interchangeable Core: | 6 or 7-pin Compatible with Best, Falcon & Arrow Large Format IC Cores compatible with Schlage |
| Cylinder: | 6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available |
| Keying: | Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems |
| Finishes: | F Series Trim: 626 (US26D) J Standard and J Wide Trim: 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 629 (US32), 630 (US32D) Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series |
| Certifications, Listing, Compliances: | UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANSI/BHMA 156.13 Operational Grade 1 and Security Grade 1 Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376.Design load rating: ± 70.0 PSF for single door (3' x 7') Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings J Wide Escutcheon Trim complies with Unified Facilities Guide Specification 08 71 00 (August 2008) |
| Performance: | Tested to over 11 million cycles, 11x ANSI/BHMA standard |
| Warranty: | Lifetime Limited Warranty |
