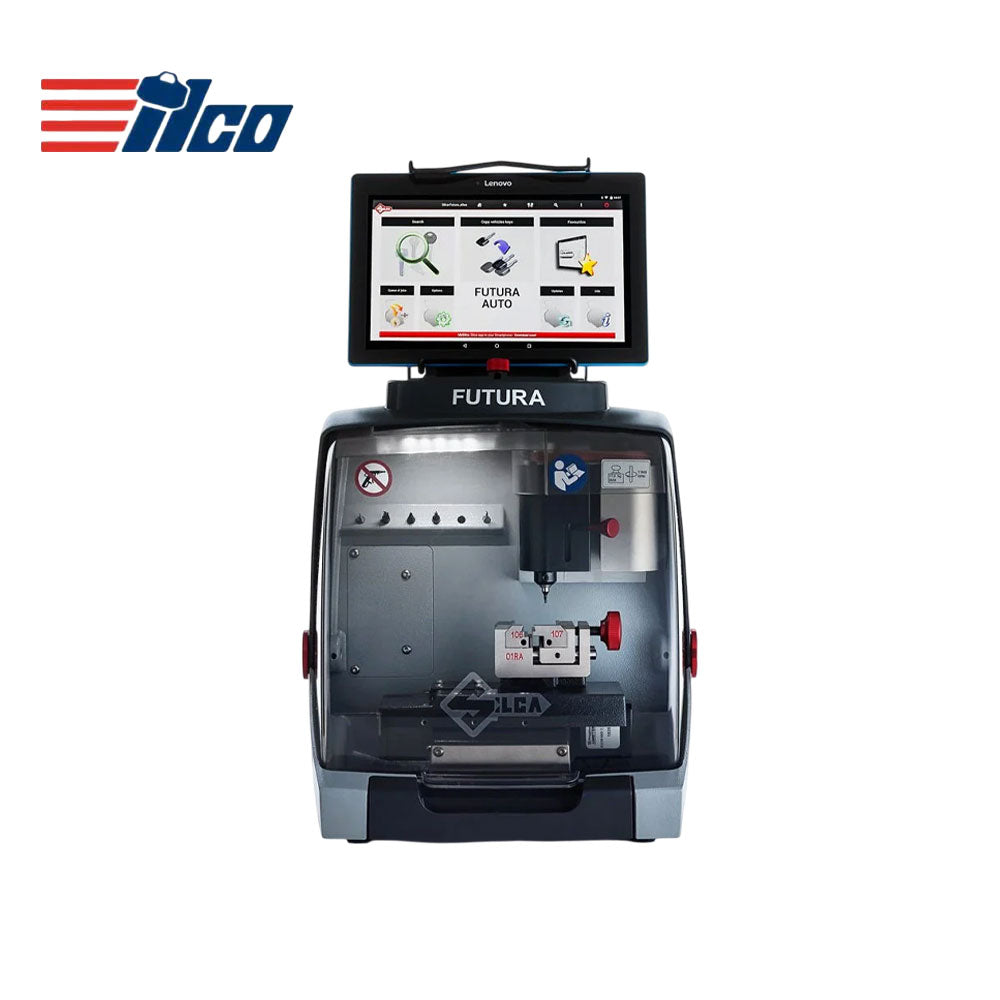

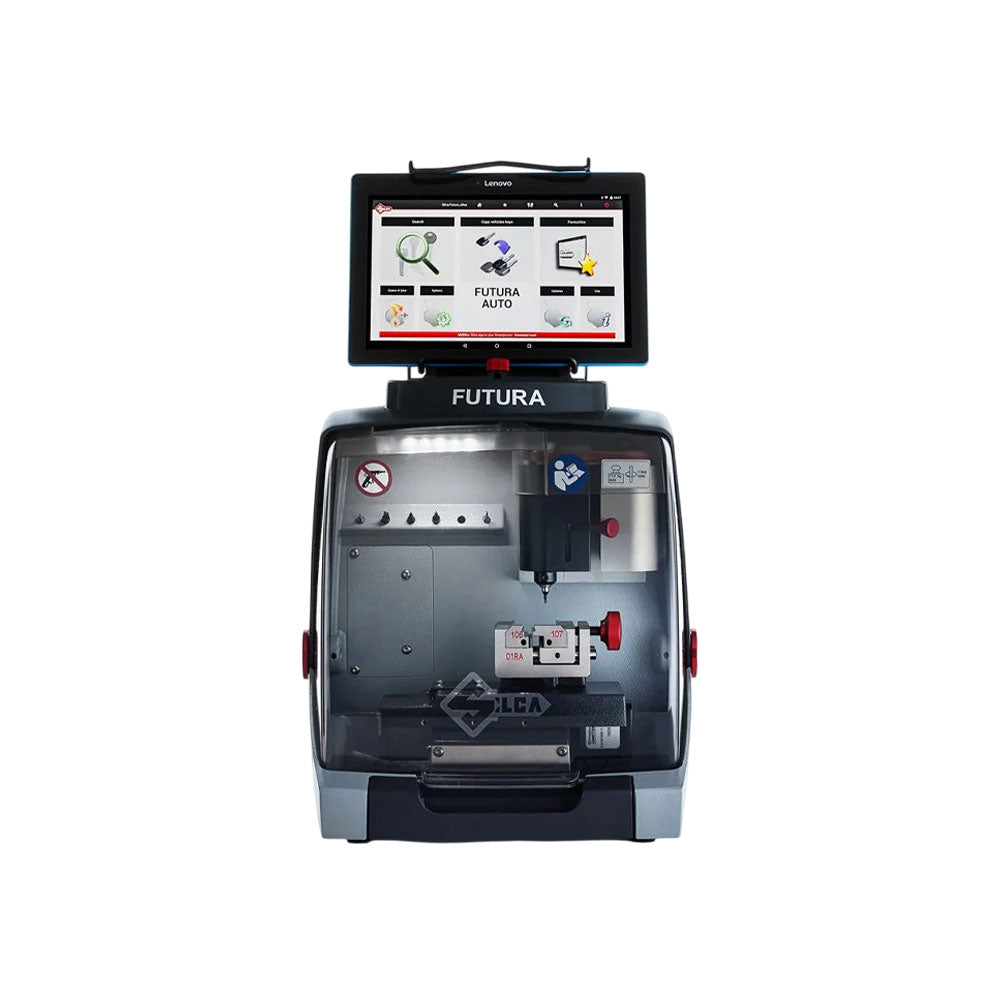

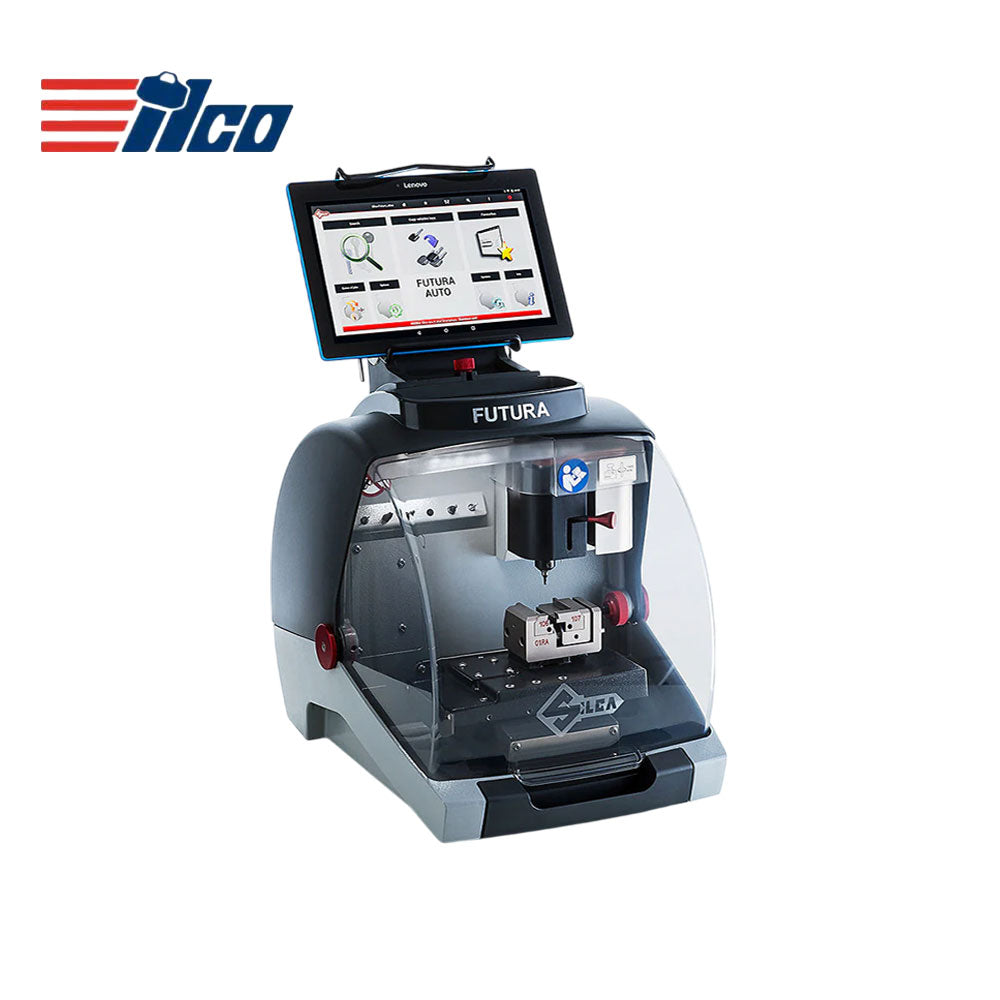

ILCO Futura Auto Automotive Code-Cutting Machine - Key Cutting Machine

ILCO Futura Auto Automotive Code-Cutting Machine - Key Cutting Machine

ILCO Futura Auto Automotive Code Cutting Machine The electronic key cutting machine with one cutting station and two interchangeable clamps for duplicating and originating all types of automotive keys, including heavy trucks and motorcycles. Additional keys used for gas cap locks, glove boxes and roof racks are also included in the database. Controlled by a removable 10” (254mm) touchscreen tablet, the Futura Auto guides the user step by step in all key cutting operations making it the perfect machine for those just getting into the automotive locksmith business or the seasoned professionals offering roadside services.

Features:

• User friendly software with step by step instructions
• Fast key search – simply enter Make/Model/Year and the software guides you through the process
• Details include a cutter holder, tool/accessory holder on top of the machine
• The color changing LED lights help the operator to immediately see the process status:
  • White – machine is ready to proceed
  • Yellow – machine is in the process of cutting the key
  • Green – key cutting is complete, and it is safe to raise the safety shield
• WiFi link between machine and tablet or the user can tether the tablet directly to the machine
• Equipped with two USB ports on the back of the machine; one for tablet recharge and one for the tethering connection so the machine and tablet remain connected and operational even when the WiFi connection is lost or unstable. The second USB port can also be used to connect the supplied USB flash drive to import code tables or machine software updates
• Step by step instructions for updating machine software
• Software Interface with Instacode and KreateAKey

Specifications:

• Motor: 24V dc
• Power Supply: 90/264V a.c 50/60Hz/220W MEANWELL GS220A24R7B
• Tool Speed: 12100 RPM
• Movements: 3 axes (special bushings) driven by step motors on rectified roller guides
• Carriage Runs: Axis X: 1.18” (30mm)
• Axis Y: 1.97” (50mm)
• Axis Z: 1.06” (27mm)
• Dimensions: Width 12.52” (318mm) Depth 16.26” (413mm) Height – 20.47” (522mm),13.38” (340mm) w/o tablet
• Weight: 44 lbs. (20 kg)
• Warranty: 2 Years (machine and tablet).

Standard Parts / Accessories:

• Cutters: 12L HSS Super Rapid Steel – for edge cut keys; 01LW, 02LW, 06LW carbide, coated – for track keys
• Tracers: 06T D953489ZR , 07TMobile D953488ZR

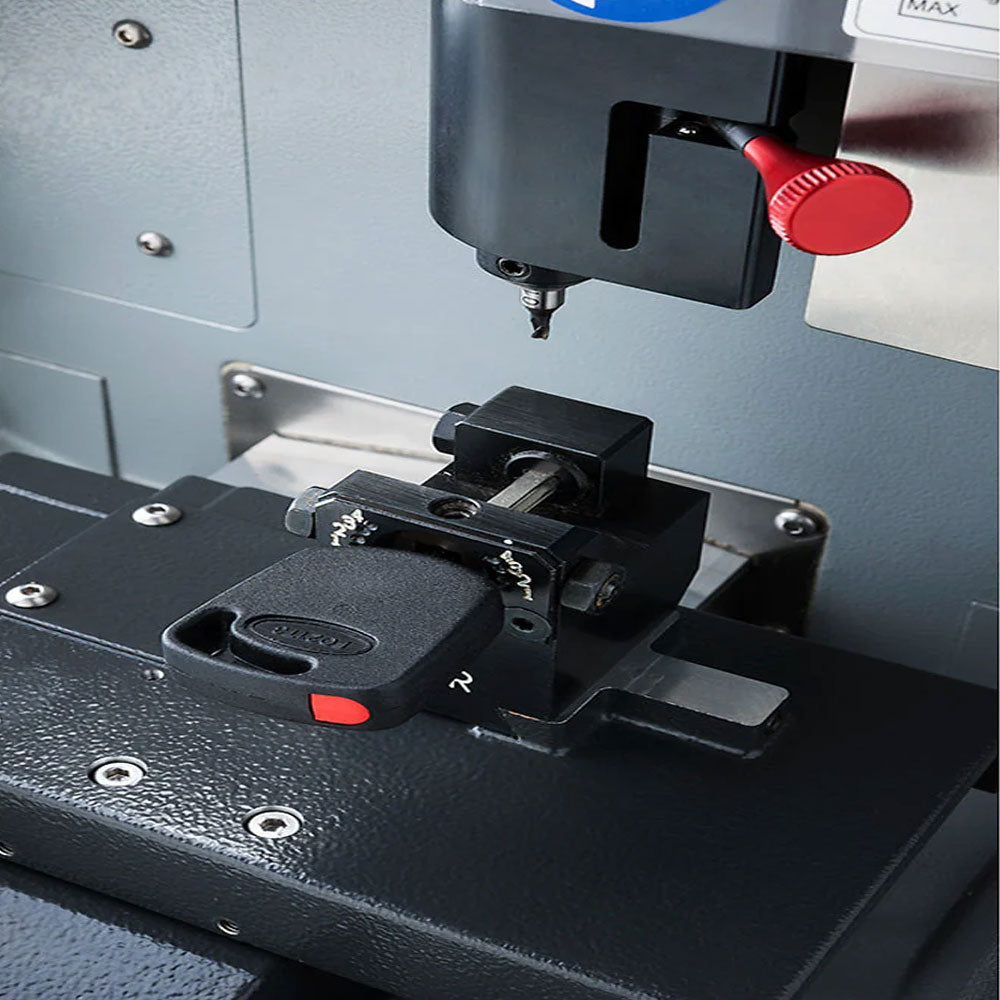

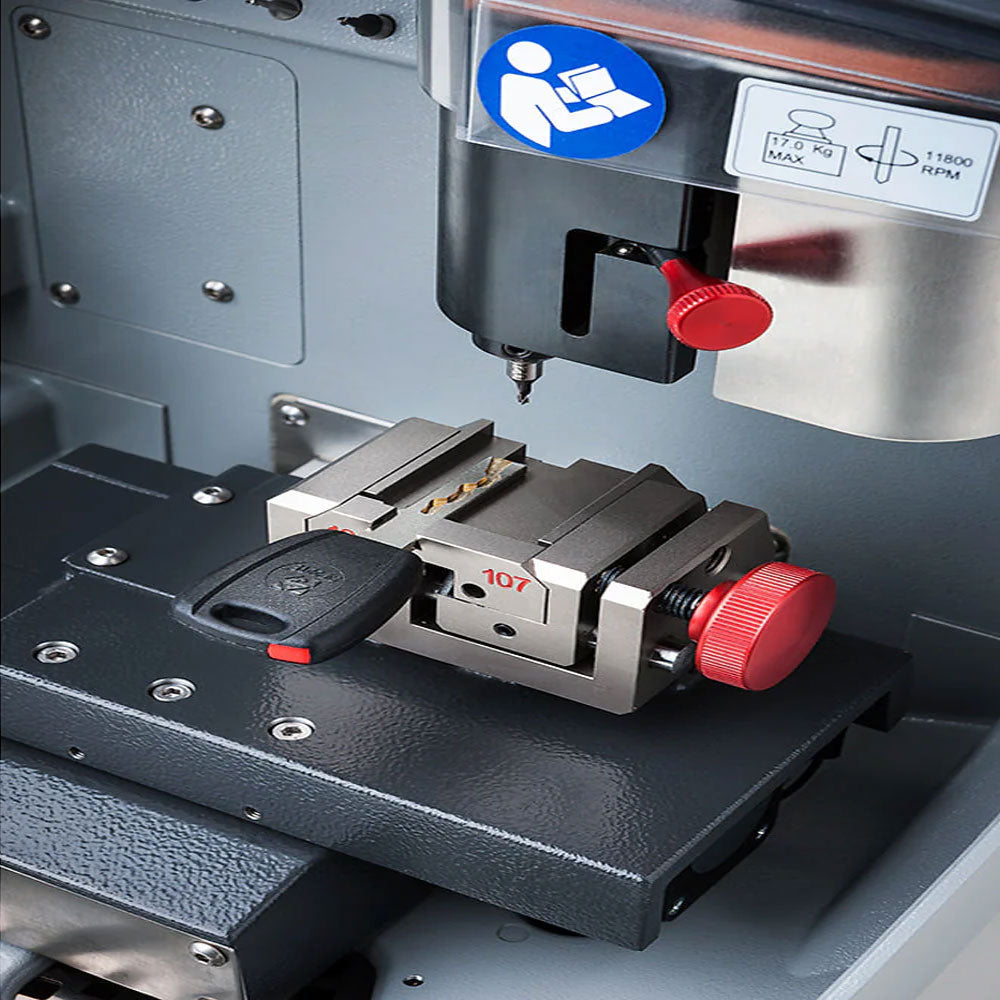

• Clamps: 01RA D949928ZR w/Jaw 106 D949907ZR and Jaw 107 D949905ZR for laser keys; 01VA D949854ZR for edgecut keys
• Accessories: STOP 4 TOOL, Tip Stop Bar, Shoulder Stop Bar, 01RA, USB Pen, 1.2/1.7mm shim pins, Brush, Mounting bracket, Stylus touch pen, Z3 calibration keys, 2.5mm “T” allen key, allen key set 1.55mm,
• A45 adapter, spare fuses, plastic tool box
• Optional: *02R Clamp D743275ZB for Tubular keys used on Harley Davidson motorcycles *03R Clamp D743276ZB for Ford Tibbe FO21 keys. Part #: BK0497XXXX / D853299ZB

Download:

• User Manual
