Uniview Tec | SKU:
UVT-IPV4M28X
17% off

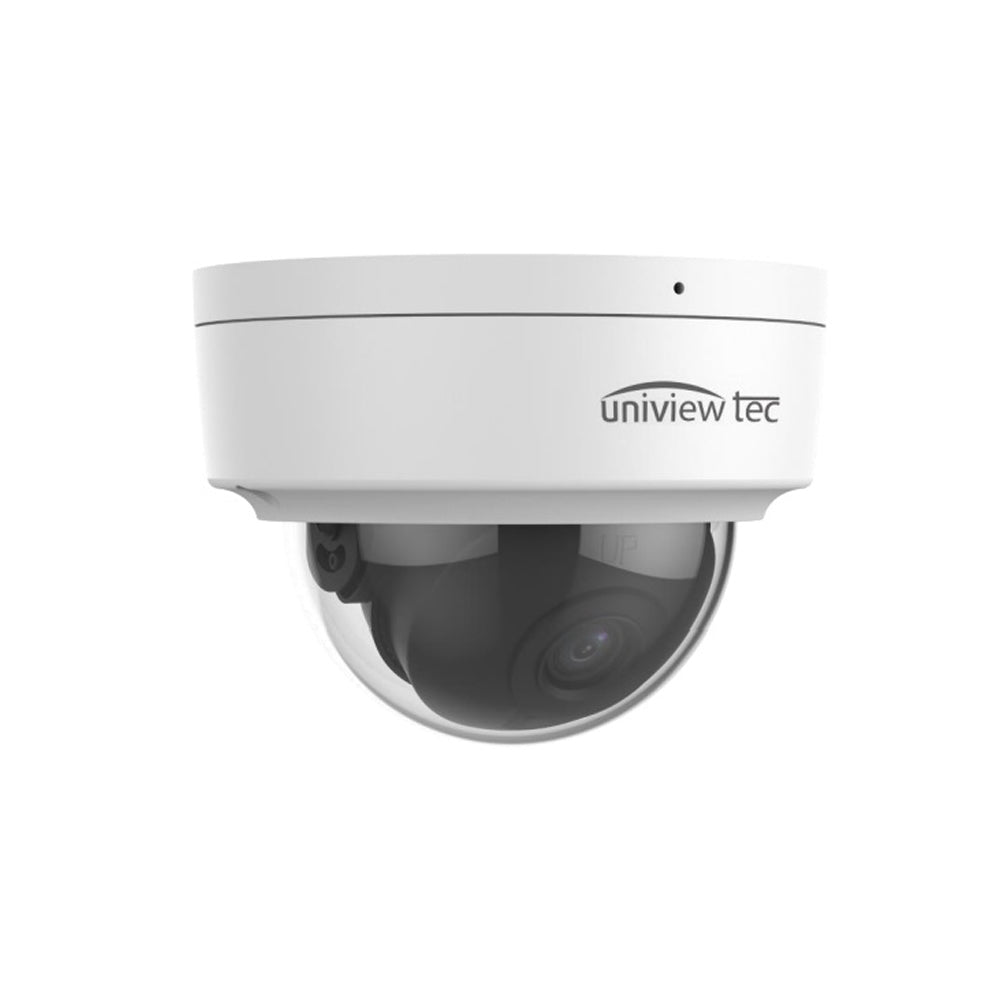

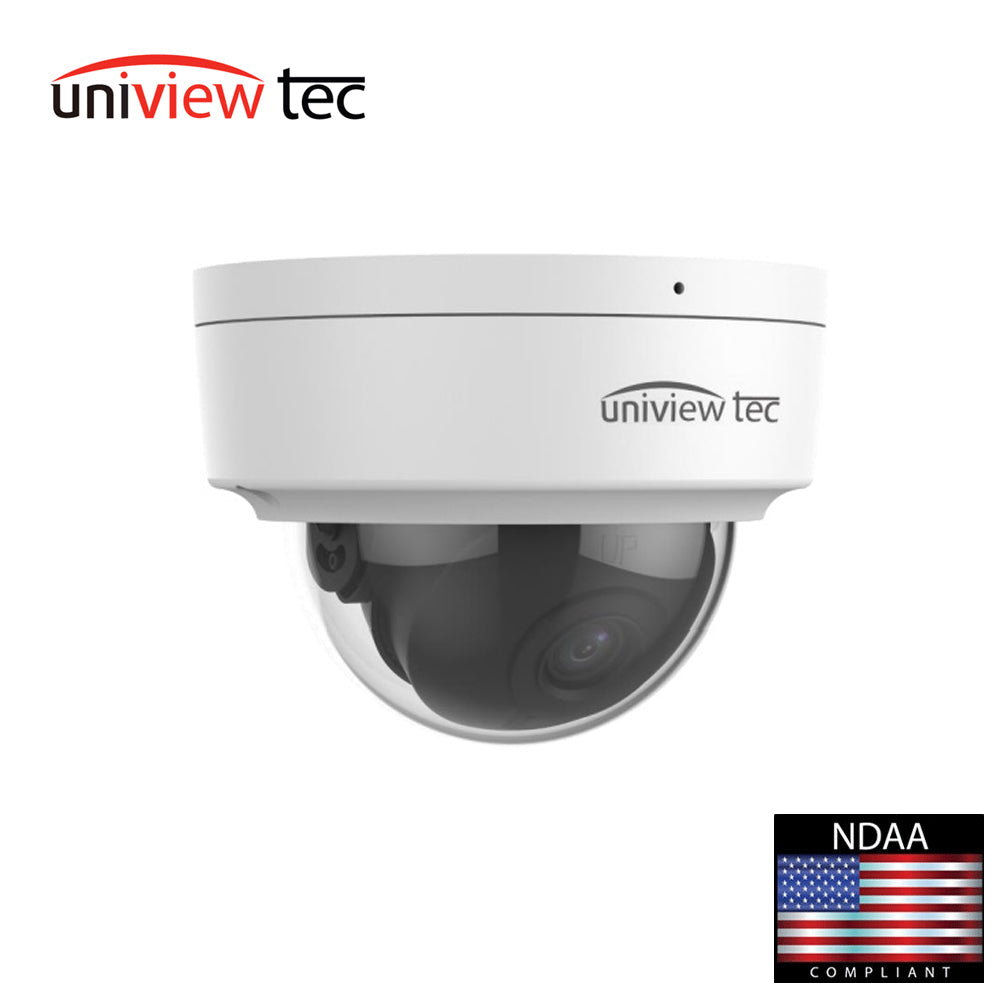

Uniview Tec IPV4M28X IR Vandal Dome Camera 2.8mm 4MP True Day/Night Lighthunter WDR Built-in Microphone
$19900
$23880
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Uniview Tec IPV4M28X IR Vandal Dome Camera 2.8mm 4MP True Day/Night...
$19900
$23880
Unit price
/
Unavailable
Description
Description
Uniview Tec IPV4M28X IR Vandal Dome Camera 2.8mm 4MP True Day/Night Lighthunter WDR Built-in Microphone
Key Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- LightHunter Technology ensure ultra-high image quality in low illumination environment
- Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 131 Feet
- 2.8mm fixed, wide-angle lens; and Two-way Audio with Built-in Microphone
- Backlight Compensation, Defog and 3D DNR (Digital Noise Reduction)
- TRUE Day/Night and WDR (130db) functionality for all Lighting Conditions
- Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)
- Triple Video Streams; ONVIF Profile S Compliant and Built-in Micro-SD Card Slot enables local storage up to 256GB
- Intelligent perimeter protection such as attribute collection with color retrieval, cross line and people counting, and smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- 3-Way Axis, IP67 Weather Resistant Housing and PoE & 12VDC Power Options
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App's for iPhone and Android Device
Specifications:
| Camera | |||||
|---|---|---|---|---|---|
| Sensor | 1/3” 4MP, progressive scan CMOS | ||||
| Minimum illumination | Color: 0.002 lux (F1.6, AGC ON); 0 lux with IR on | ||||
| True Day / Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto / Manual, 1 ~ 1/100000s | ||||
| Adjustment angle (3-way Axis) | Pan: 0° ~ 360°; Tilt: 0° ~ 70°; Rotate: 0° ~ 350° | ||||
| WDR | 130dB | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Lens | 2.8mm @ F2.0 | ||||
| Iris | Fixed | ||||
| Field of View (H) | 97.68° | ||||
| Field of View (V) | 52.67° | ||||
| Field of View (D) | 102.52° | ||||
| DORI | |||||
| DORI Distance |
|
||||
| Illuminator | |||||
| IR Range | Up to 40m (131ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 4MP (2688 x 1520), Max 30fps; 4MP (2560 x 1440), Max 30fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080) Sub Stream: 1080P (1920 x 1080), Max 30fps; 720P (1280 x 720) Max 30fps; D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps Third Stream: D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Video Stream | Triple | ||||
| Image | |||||
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | ||||
| Digital Noise Reduction | 2D / 3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Auto Scene Match (ASM) | Support (Only WDR) | ||||
| Intelligent Analytics | |||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| Recognition | Face capture | ||||
| Attribute Collection | Color retrieval | ||||
| People Counting | Support people flow counting and crowd density monitoring | ||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||
| Intrusion Events | |||||
| Basic Detection | Motion detection, Ultra motion detection, tampering alarm, audio detection | ||||
| General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication |
||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Suppressione | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP, SSH |
||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||
| Client | Guard Station, Guard Viewer | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
||||
| Interface | |||||
| Audio I / O | Input: impedance 35kΩ; amplitude 2V [p-p]; Output: impedance 600Ω; amplitude 2V [p-p] | ||||
| Alarm I / O | 1 /1 | ||||
| Built-in Mic | Support | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 6.5W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Ø 111 x 83mm ( Ø 4.4 x 3.3”) | ||||
| Weight | 0.43kg (0.93lb) | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Conformity Certifications | IP67, CE, FCC | ||||
