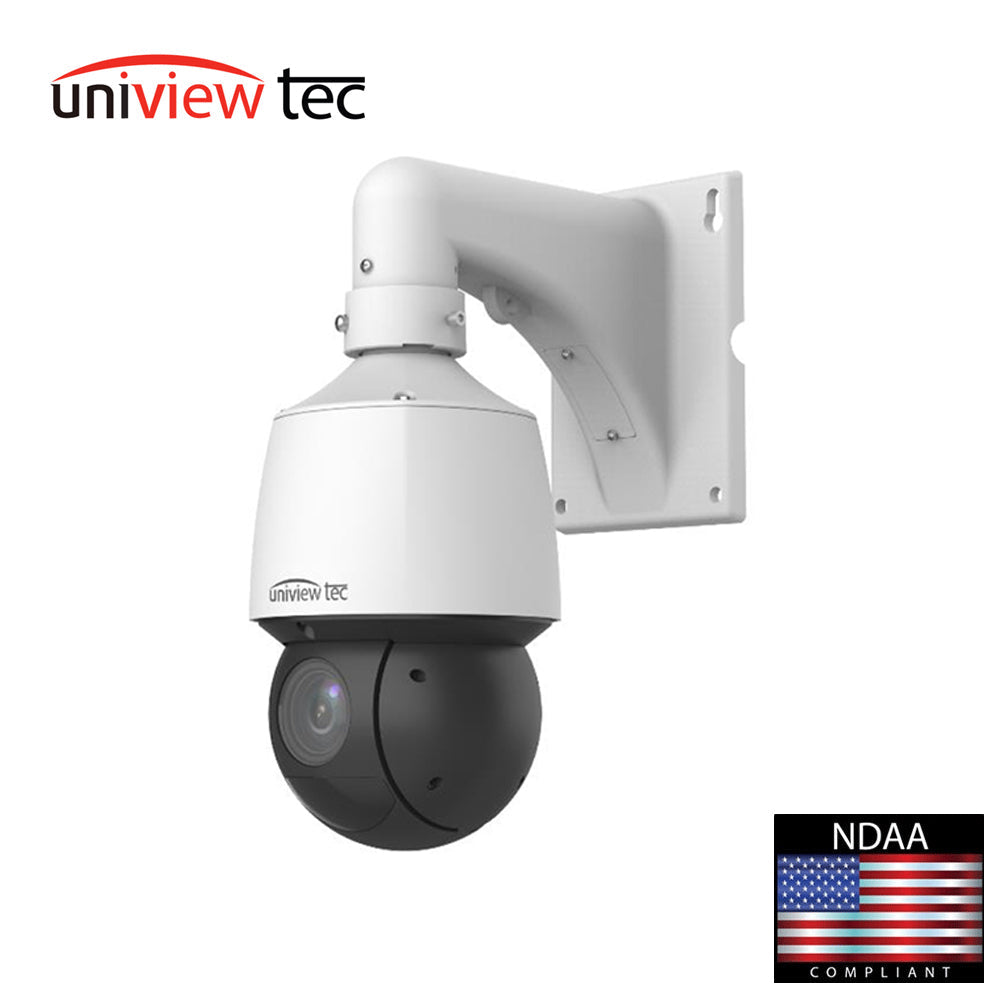

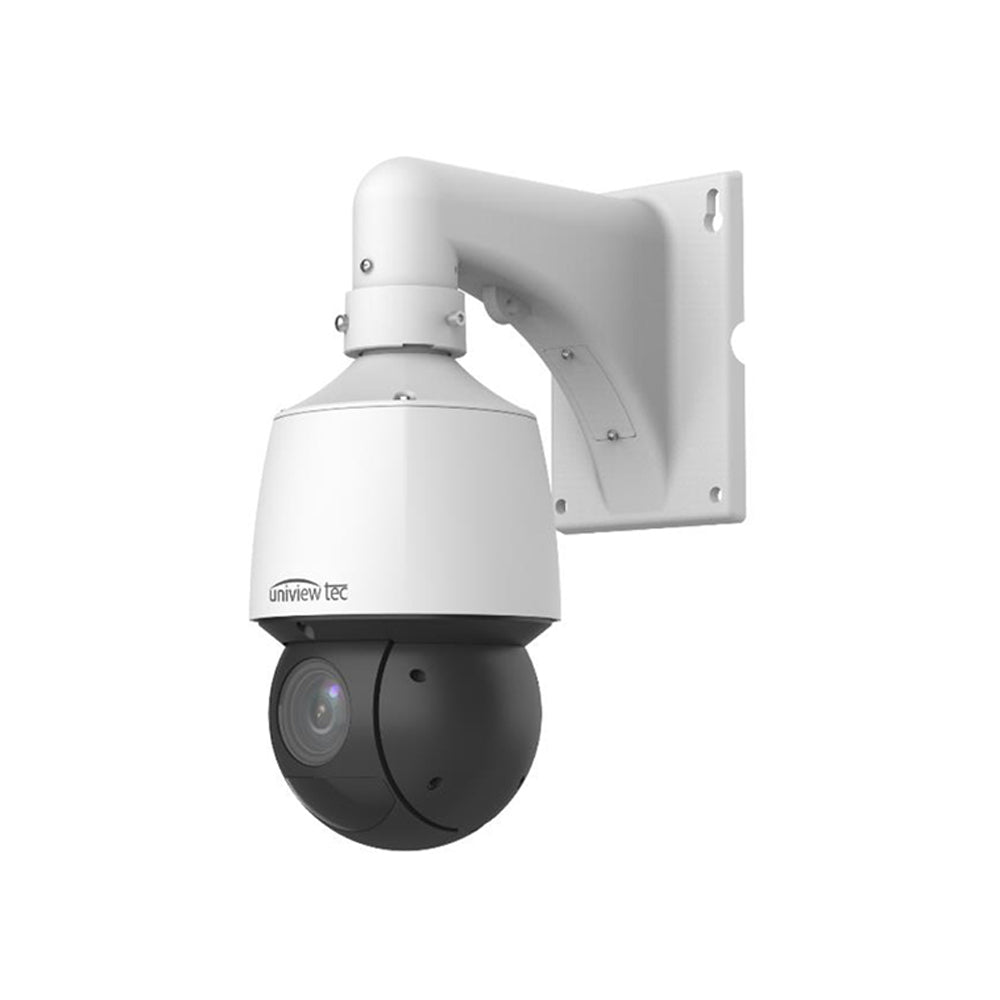

Uniview Tec IPCSD425X 4MP 25x Motorized Zoom, WDR, Light Hunter, PTZ DOME Camera
$1,11900
$1,34280
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Uniview Tec IPCSD425X 4MP 25x Motorized Zoom, WDR, Light Hunter, PT...
$1,11900
$1,34280
Unit price
/
Unavailable
Description
Description
Uniview Tec IPCSD425X 4MP 25x Motorized Zoom, WDR, Light Hunter, PTZ DOME Camera
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Light Hunter illumination technology ensures ultra-high quality with 4MP, 2688 x 1520 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- Ultra-Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 328 Feet
- 4.8 ~ 120mm, 25x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- High Speed up to 240°/sec and up to 1024 Preset Positions
- Triple Video Streams; ONVIF Profile Series Compliant; & Intelligent perimeter protection with Smart Intrusion Detection Analytics
- IP67 / IK10 Weather / Vandal Resistant Housing and PoE & 12VDC Power Options
- Includes Wall Mount, with optional Junction Box, Pole & Corner Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- Supported by Uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device
Specifications:
| Camera | ||||||
|---|---|---|---|---|---|---|
| Sensor | 1/2.8” 4MP, progressive scan CMOS | |||||
| Minimum illumination | Color: 0.003 lux (F1.5, AGC ON); 0 lux with IR on | |||||
| True Day / Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto / Manual, 1 ~ 1/100000s | |||||
| WDR | 120dB | |||||
| S/N | >56dB | |||||
| Lens | ||||||
| Lens | 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens | |||||
| Optical / Digital Zoom | 25 / 16 | |||||
| Iris | Auto; F1.5 ~ F3.8 | |||||
| Field of View (H) | 52.20°~2.74° | |||||
| Field of View (V) | 30.81°~1.54° | |||||
| Field of View (D) | 64.20°~3.23° | |||||
| DORI | ||||||
| DORI Distance |
|
|||||
| Illuminator | ||||||
| IR Range | Up to 100m (328ft) IR rang | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate |
Main Stream: 4MP (2688 x 1520), Max 30fps Sub Stream: 2MP (1920 x 1080), Max 30fps Third Stream: D1 (720 x 576), Max 30fps; |
|||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code / ROI | Support | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||
| Video Stream | Triple streams | |||||
| Image | ||||||
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | |||||
| Digital Noise Reduction | 2D / 3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Intelligence | ||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||||
| Face Capture | Support, Face attributes: Gender, Age range, Glasses, Mask | |||||
| People Counting | Support people flow counting and crowd density monitoring | |||||
| Events | ||||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | |||||
| Auto Tracking | Support | |||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way audio | Support | |||||
| Suppressione | Support | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
|||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | Guard Station, Guard Viewer | |||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Pan & Tilt | ||||||
| Pan Range | 360° (endless) | |||||
| Pan Speed | 0.1°/s ~ 200°/s Preset speed: 240°/s |
|||||
| Tilt Range | –15° ~ 90° (auto reverse) | |||||
| Tilt Speed | 0.1°/s ~ 120°/s Preset speed: 200°/s |
|||||
| Number of Presets | 1024 | |||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||
| Patrol Stay Time | 15s~1800s | |||||
| Preset Image Freeze | Support | |||||
| Home Position | Support | |||||
| Interface | ||||||
| Audio I/O | 1 / 1 | |||||
| Alarm I/O | 2 / 1 | |||||
| Serial Port | 1 x RS485 | |||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | 1 x BNC | |||||
| General | ||||||
| Power | DC 12V (±25%, 3A), PoE (IEEE 802.3at); Power consumption: Max 21W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (Ø × H) | Ø166 x 295mm (Ø6.5” x 11.6”) | |||||
| Weight | 3.05kg (6.72lb) | |||||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Conformity Certifications | IP67, IK10, CE, FCC | |||||
