ADC2019 Fiat Chrysler (FCA) Gateway Bypass Cable - D756296AD

ADC2019 Fiat Chrysler (FCA) Gateway Bypass Cable - D756296AD

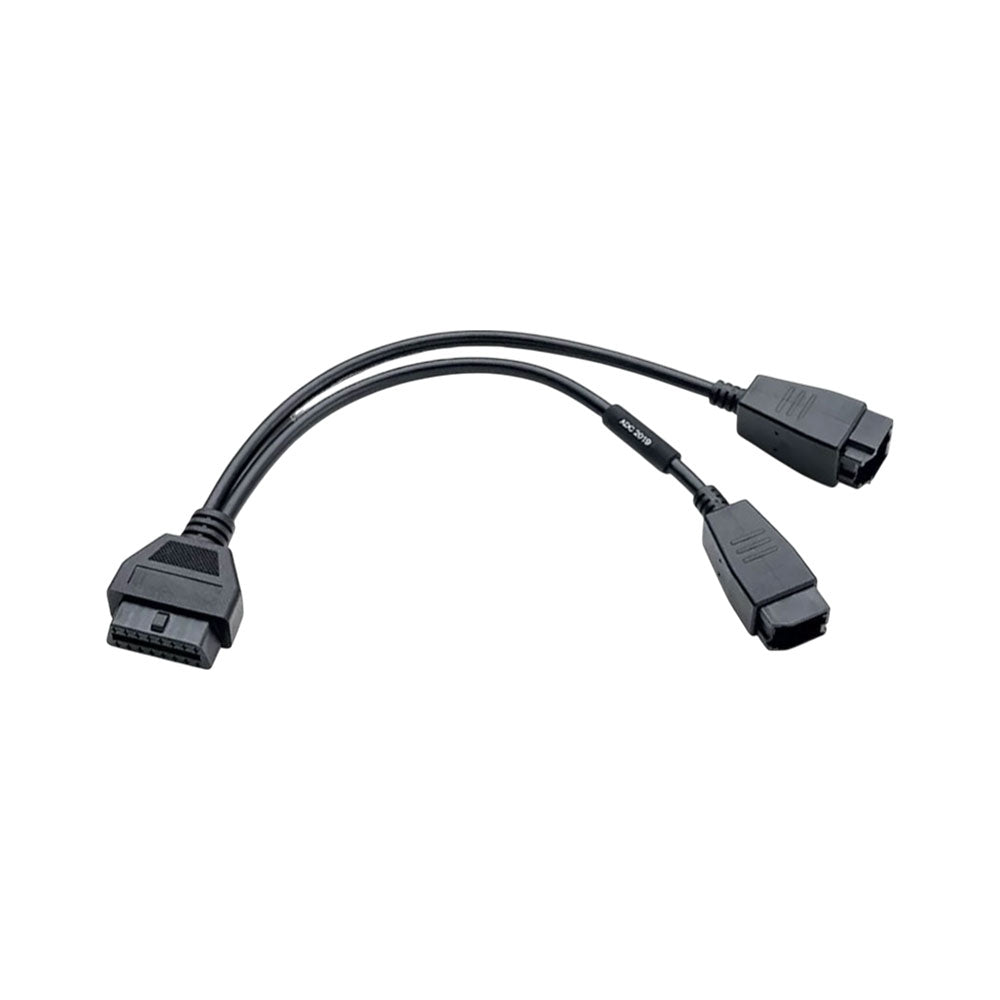

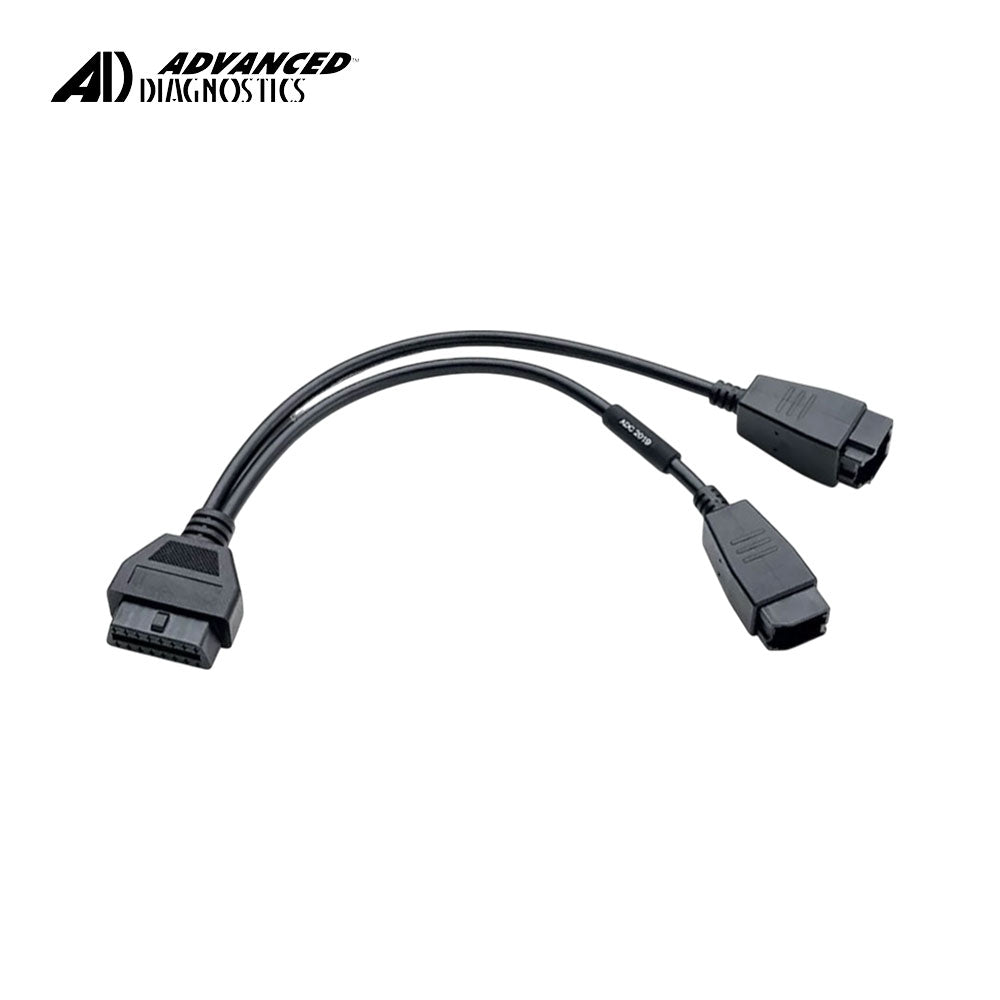

The FCA* Gateway Bypass cable works together with Smart Pro and Advanced Diagnostics Fiat*/Ram* (FCA) software to program bladed and proximity keys for select North American models fitted with a Secure Gateway Module (SGM).

What does the software do?
The Gateway Bypass cable allows Smart Pro users to program bladed and proximity keys for specific Alfa Romeo*, Ram*, and other models from 2018 onward where programming was not previously possible with the existing ADC2011 and ADC2012 cables. The cables consist of 2 male connectors (8 and 12 pin) and connects the Smart Pro directly to the vehicle’s Secure Gateway Module (SGM) wiring harness allowing the SGM to be bypassed. No further intervention on the vehicle is necessary. ADC2019 also gives users the option to connect to the SGM on other FCA* models instead of the earlier ADC2011 and ADC2012 cables. In some cases, use of ADC2019 might be considered easier or preferable depending on the ease of access to the SGM.

Features:

• Consists of 2 male connectors (8 and 12 pin)
• Black finish

Part Number: D756296AD

Downloads:

• Data Sheet
