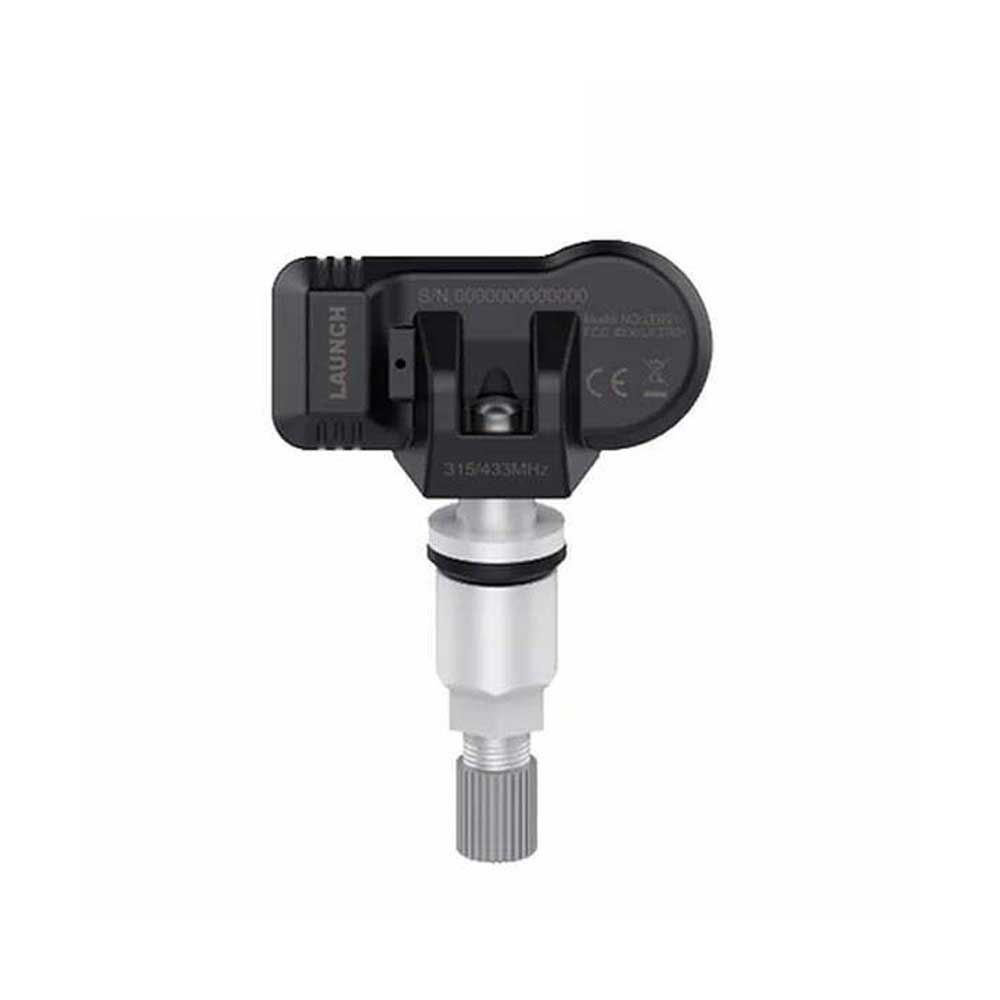

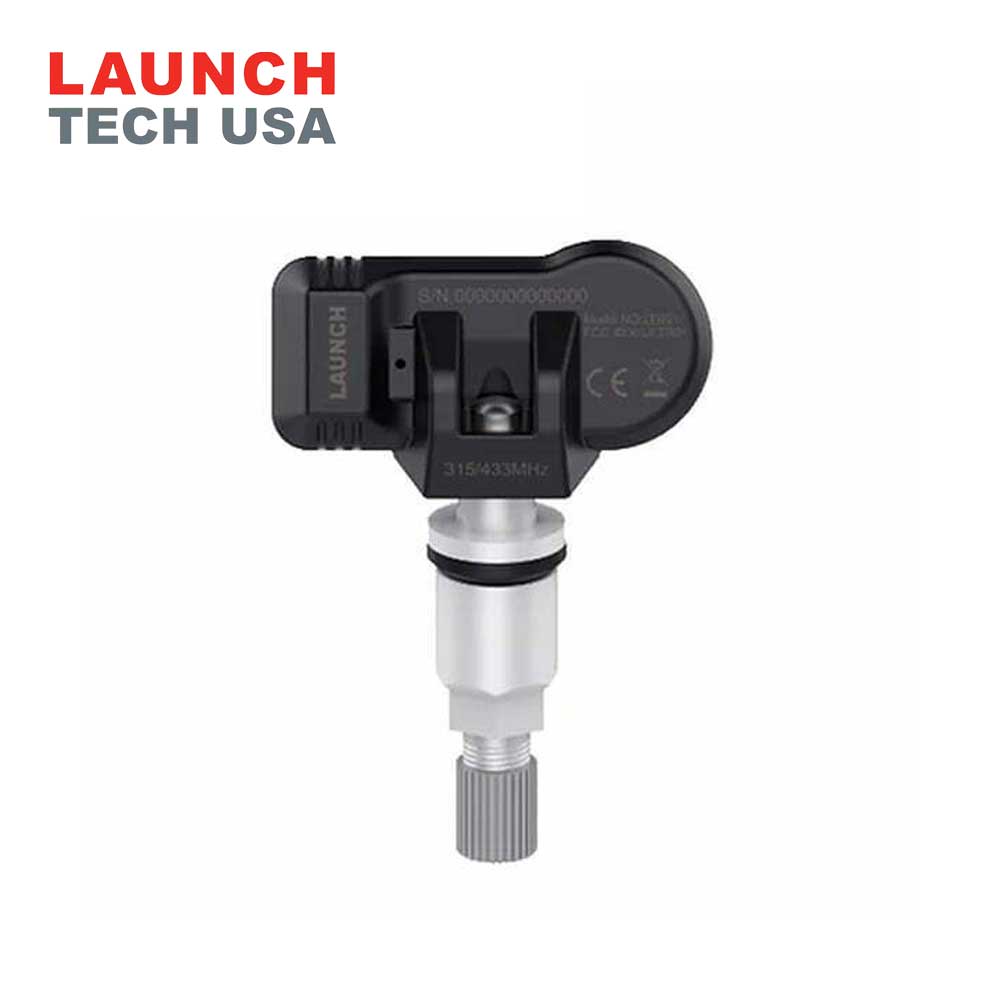

Launch - LTR-01 RF Sensor Metal Body

Launch - LTR-01 RF Sensor Metal Body

LTR-01 is Launch own designed and produced RF Sensor to offer the best TPMS solutions for any repair shop or tire shops. With the outstanding and reliable OE level performance, LTR-01 can replace all original tire pressure sensors, copy the original tire pressure sensor data and can be programmed indefinitely.

Features:

• Compatible with more than 95% of OE Sensors in 315 Mhz /433 Mhz
• Able to replace all the OE tire pressure sensors,copy the OE sensor data and can be programmed for unlimited times
• The pressure value of LTR-01 can be accurate to 0.1 BAR with an international leading automotive -grade chip
• Over-the air wireless programmming and battery life lasts for 4 to 6years

Specifications:

• Support 315MHZ and 433MHZ;
• Unlimited programming;
• The sensor is compatible with more than 98% of the car models in the market, and supports all original tire pressure systems;
• Support LOS, WAL, PAL, SAL and WASP automatic positioning technology;
• The nut torque is 4Nm, and the screw torque is 12Nm;
• Sensor working problem -45°C-125°C, working pressure 0-900KPa;
• Use Panasonic high-capacity battery and stable NXP chip;
• Operation Frequency: 315Mhz/ 433 Mhz
• Battery Voltage: 3.0V
• RF Transmitter Power: 5-8 dBm
• Storage Temperature : -40℃--125℃
• Working Temperature : -40℃--125℃
• IP Rating: IP 67
• Dimension: 50.8*24*17.8 mm
• Weight: 42g (Metal)

ERP CODE: 341180201
