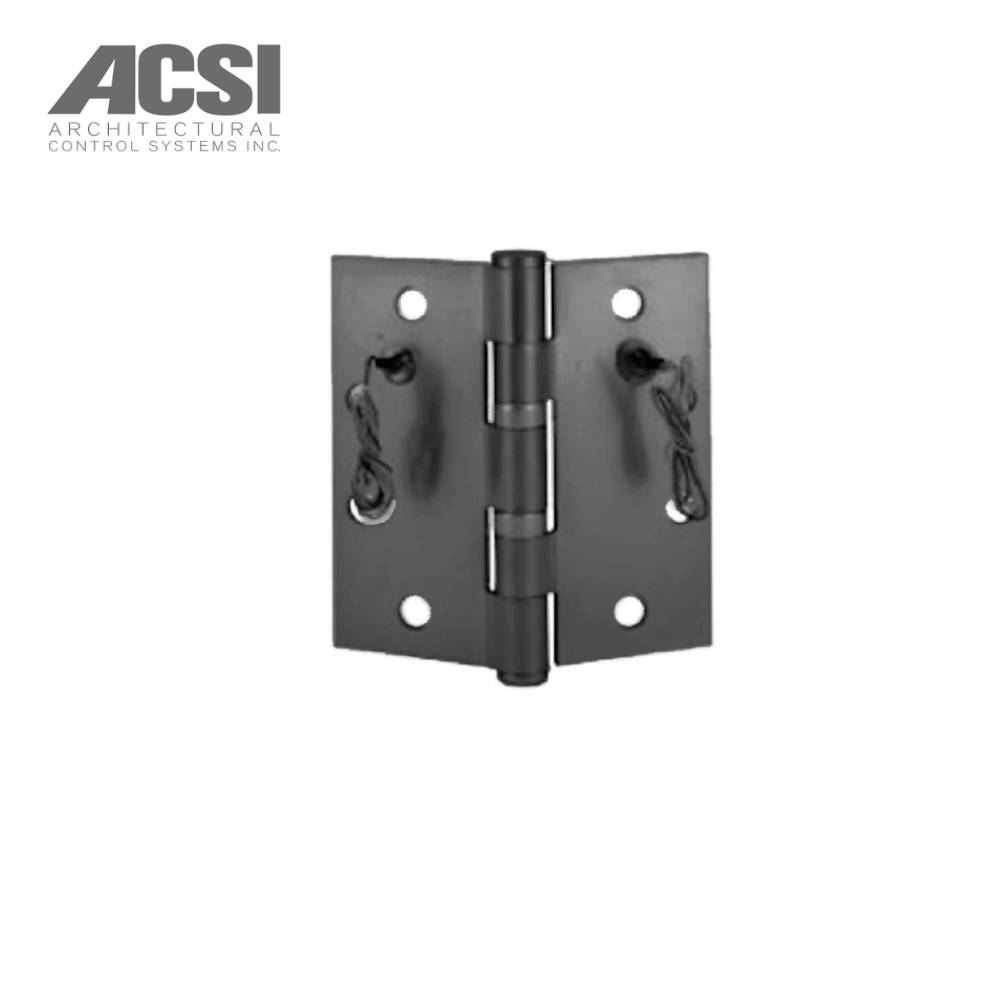

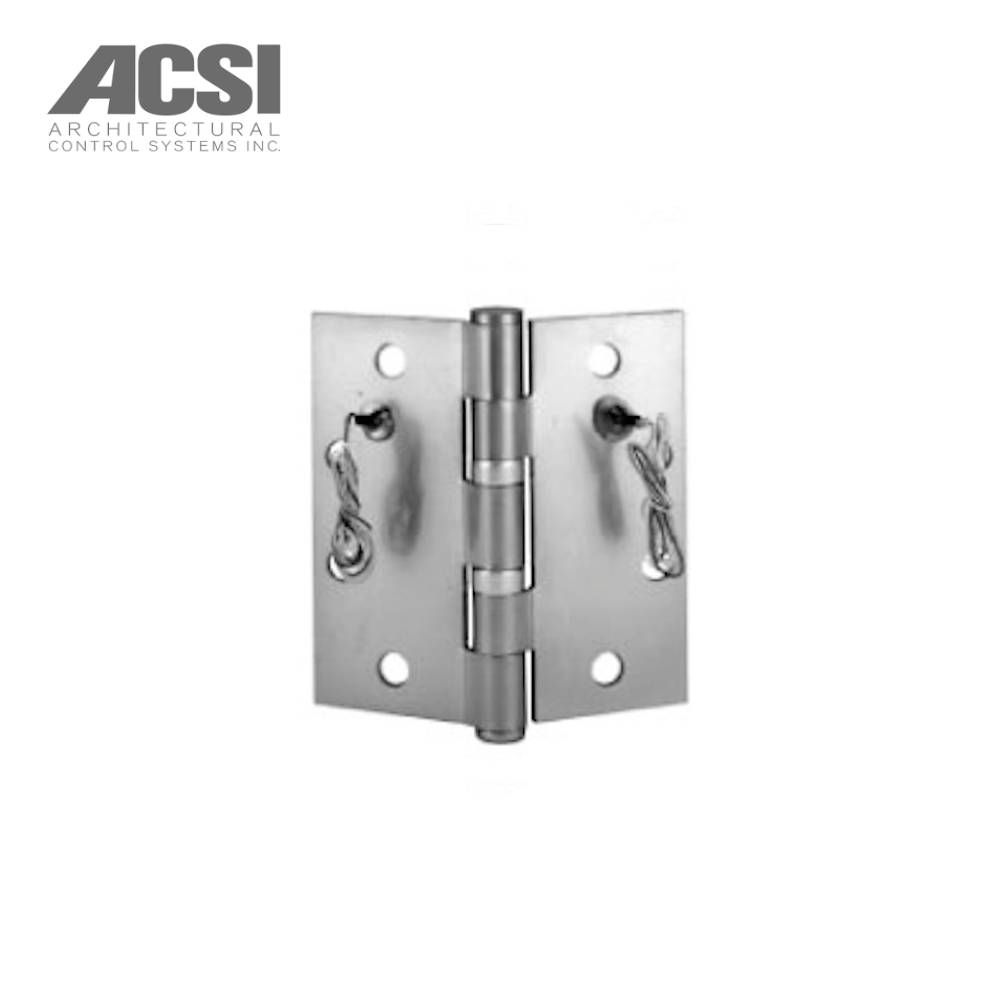

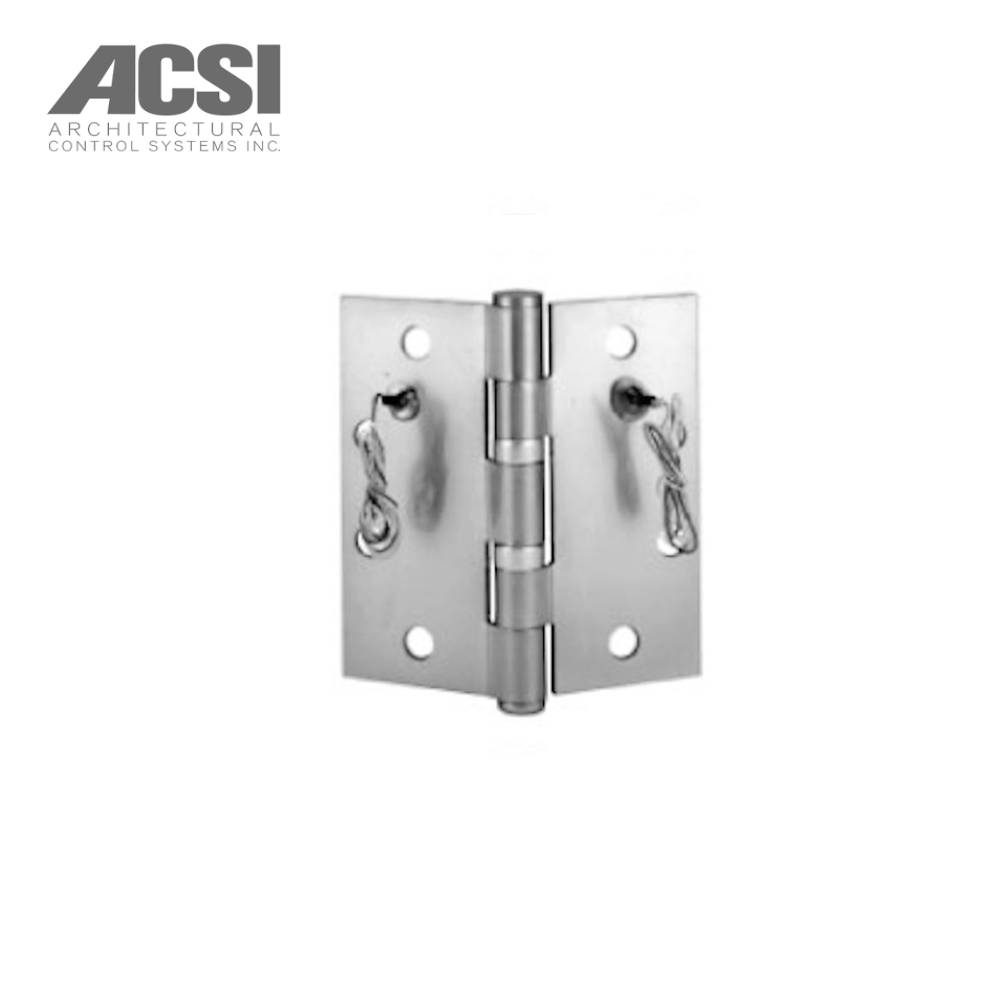

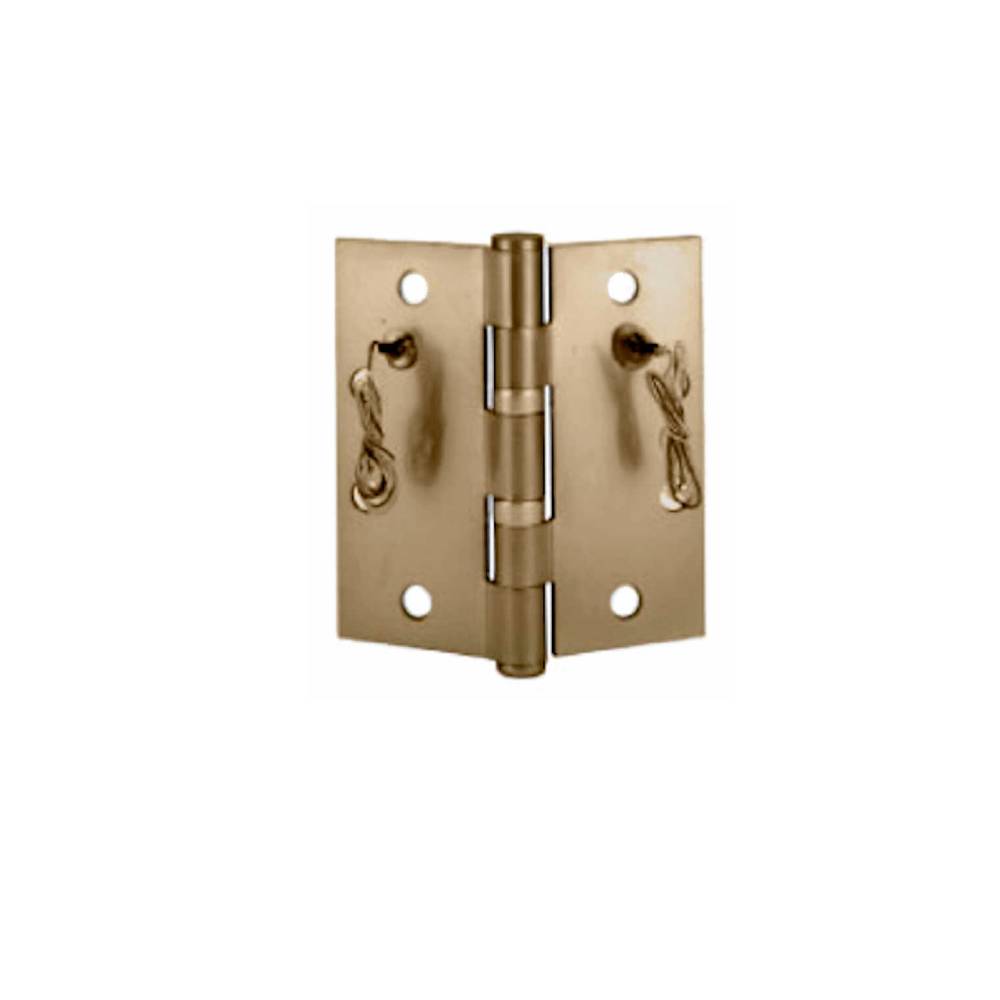

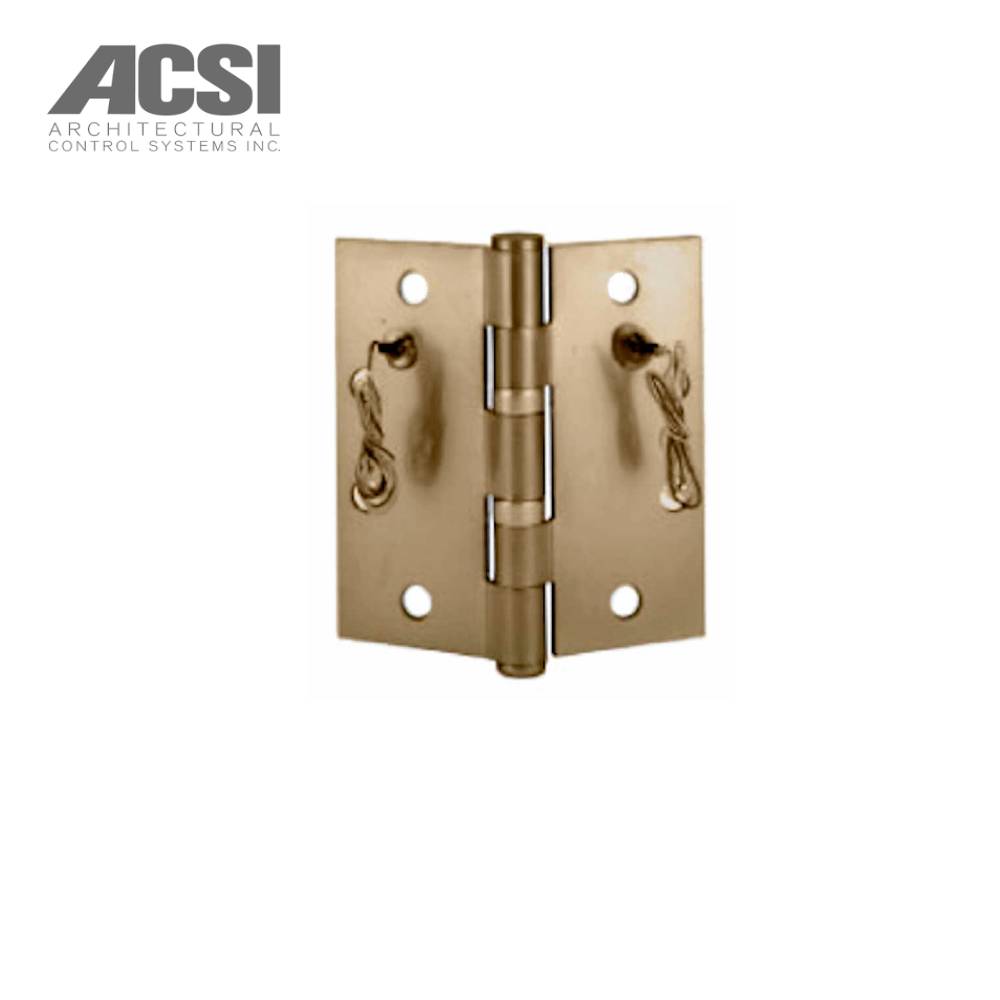

ACSI - TA2714 - Ball Bearing Full Mortise Hinge - McKinney 5 Knuckle - Concealed Electric Through-Wire
TA2714 McKinney 5 Knuckle Ball Bearing Full Mortise Hinge with Concealed Electric Through-Wire. McKinney 5 Knuckle Ball Bearing Full Mortise Hinge with Concealed Electric Through-Wire.
ACSI Series 1100 products are UL Listed and carry a full one-year warranty. UL Listed. UL Fire Rating on steel and stainless electric hinges. Provide current transfer to electrified mortise or cylindrical locks exit devices with electric latch retraction electric strikes (pairs of doors) and locks with monitoring or request to exit switches. UL Rated for 3.5 amp continuous and 16 amp pulse. Note Electric hinge must be placed in the center position only. ACSI requires NON-NRP hinges for modification. Hinge pin is not field removable after modification.
Buy the ACSI TA2714 McKinney 5 Knuckle Ball Bearing Full Mortise Hinge with Concealed Electric Through-Wire for easy installation and dependable door hardware solution.
Specifications:
| Hinge Type | Hinge, Full Mortise |
| Mounting Style | Square |
| Knuckles | 5 |
| Bearing Type | Ball Bearing |
| Finish | 10A - Satin Bronze Blackened 613 - Oil Rubbed Bronze 26 - Bright Polished Chrome 26D - Satin Chrome |
| ADA Compliant | No |
| Standards | UL Listed |
| Size | 4.5" x 4" 4.5" x 4.5" |
| Number of Wires | 1104 - Concealed electric through-wire (4 wire, 26/28ga) 1108 - Concealed electric through-wire (8 wire, 26/28ga) |
| Product Type | Electronic Hinge/Pivot |
