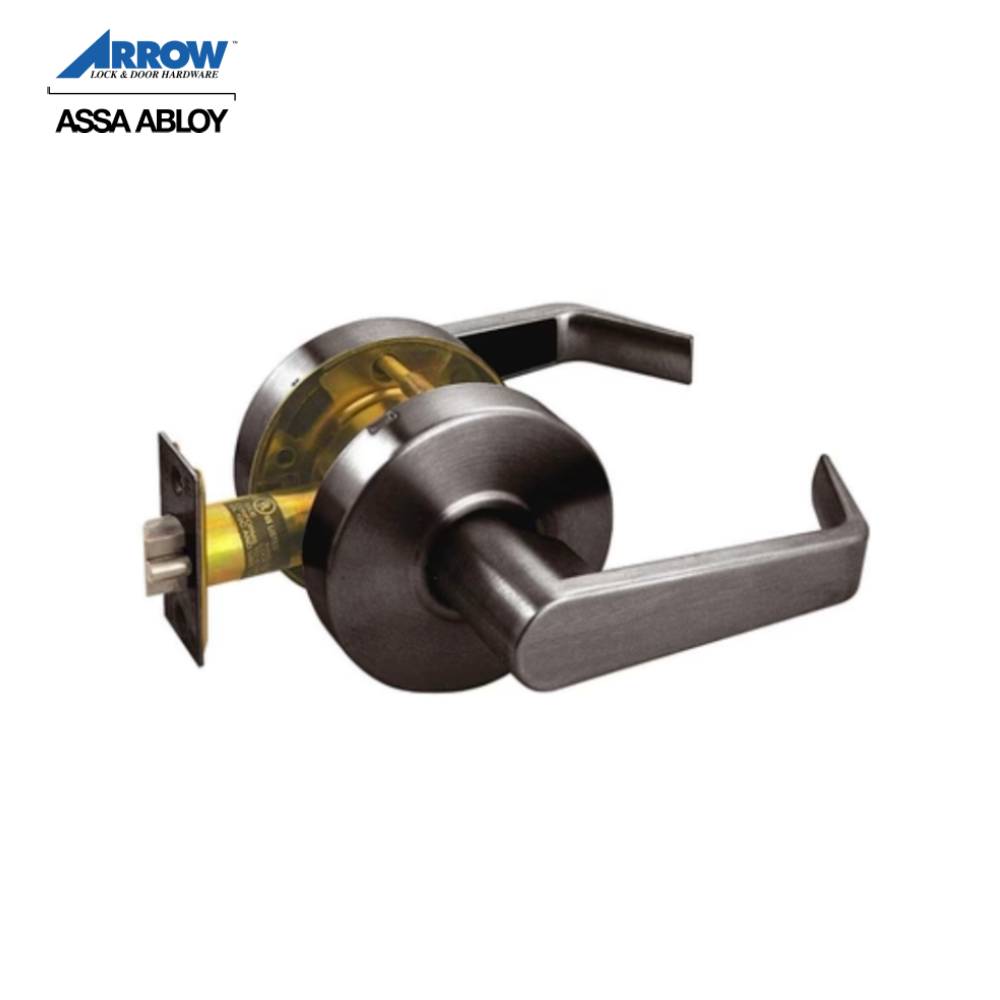

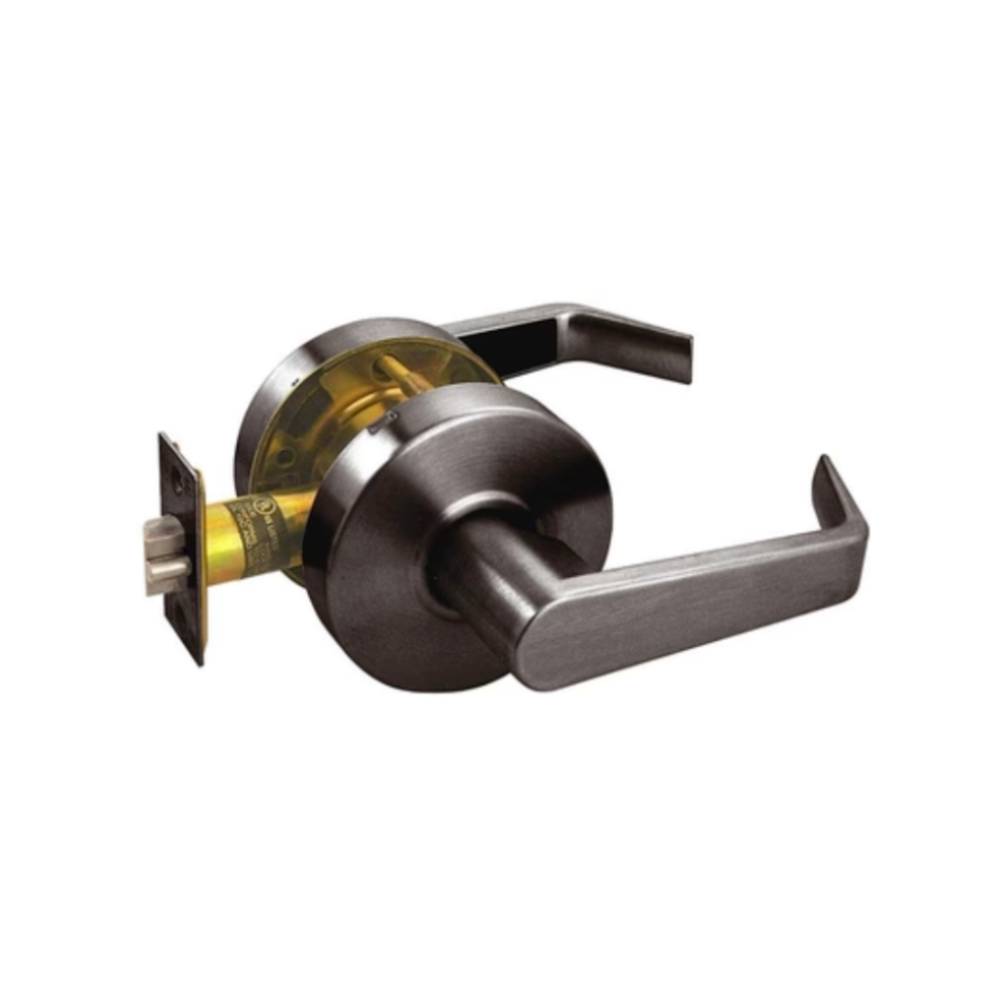

Arrow - RL01-SR-BSP - RL Series Cylindrical Lever Locks - Sierra Lever-Non-Keyed - Grade 2
The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
Features:
- Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
- Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
- Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim: RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
- Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
- Cylinder: Solid brass 6 pin. Arrow A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys: 2 brass keys
- Handing: Non-handed
- Thru-bolts: Removable thru-bolts standard on RL Series
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Arrow |
| SKU | RL01-SR-BSP |
| UID | ARRRL01SRBSP |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Taiwan |
| Unit of Measure | Each |
| UL Listing Type | ANSI A156.2 Series 4000, Grade 2, UL Listed |
| ANSI Number | F75 |
Technical Specifications:
| Function | 01-Passage |
| ANSI Function | F75 - Passage |
| Lever/Knob Design | SR - Sierra Lever |
| Rose/Escutcheon Design | 3-3/8" Rose Diameter |
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | R73 |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Std. Strike Number | R62 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
